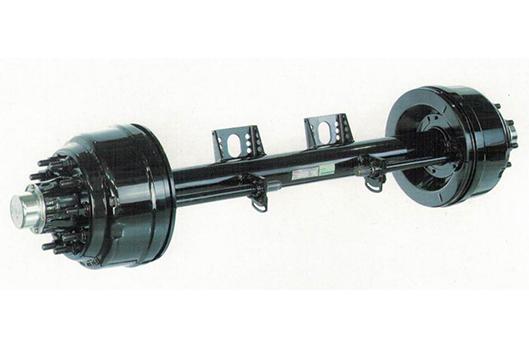

Overview of FUWA GP series axle

Integrated one-piece design axle beam with special heat treatment made by low carbon alloy steel 20Mn2.
Special processed spindle with induction hardened bearing journals.
Spider camshaft and anchor pin bores are machined with reference to the spindle after the welding operation.
High performance non-asbestos brake linings of good quality and service life.
Improved seals at camshafts for better and safer grease lubricant.
Axle beam is available with round 127 diameter and square 127mm type.
Loading capacity is available with 11.5T, 12.5T.
Track length and camshaft length could be customized.
Brake drum type is available with inboard and outboard type.
Equipped with bolt-in type hub cap.
Optional for automatic slack adjuster and ABS system.

Advantage of FUWA GP series axle

Mature technology, could be produced in large quantity at competitive cost.
Reasonable and strengthen design provides with more stability, greater capacity and longer service life.
Accurate machining process increases stability and braking performance.
Strictly selected sealing parts protect braking safety.
Complete quality control procedure including metallographical examination, pressure reversal testing, magnetic flaw detecting, etc can ensure good quality.
Durable design makes long maintenance cycle.
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

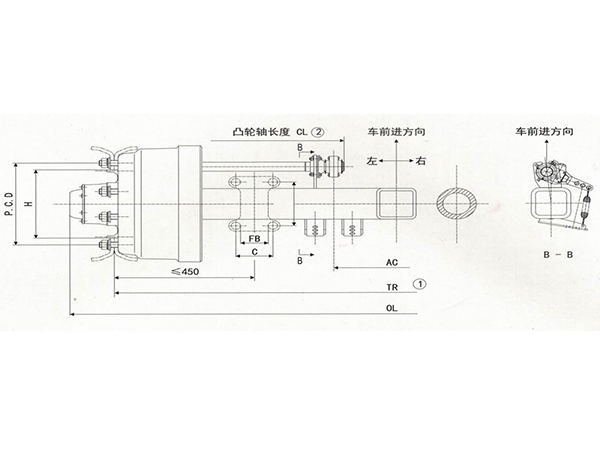

Axle Type

105 (km/h)

Max.Capacity(KG)

'S' Cam Brake

Series

ø *

Width

(mm)

Track TR (mm)

Spline No.

Axle Beam (mm)

Center Distance Of Chamber

Wheel Fixing

Total Length (mm)

Recommended Wheel

Note

New Model

Old Model

CL (mm)

AC (mm)

Studs (mm)

P.C.D. (mm)

Ø H (mm)

FP2023GP01AA

F2023GP

11,500

S 420*180

1820

10/28

○127

524

308

10*M22*1.5 ISO

335

281

~2183

≥7.50V-20

Built-In

FP2023GP02AA

F2023GP/BII

11,500

S 420*220

1820

10/28

○127

524

364

10*M22*1.5 ISO

335

281

~2183

≥7.50V-20

Built-In

FP2003GP01AA

F2003GP

11,500

S 420*180

1820

10/28

○127

524

408

10*M22*1.5 ISO

335

281

~2183

≥7.50V-20

Outer

FP2006GP01AA

F2006GP

11,500

S 420*180

1820

10/28

○127

524

408

10*M22*1.5 ISO

285.75

221

~2183

≥7.50V-20

Outer

FP2003GP03AA

11,500

S 420*200

1816

10

○127

524

376

10*M22*1.5 ISO

335

281

~2172

≥7.50V-20

Outer

FN2007GP01AA

F2007GP

11,500

S 420*180

1850

10/28

○127

524

438

10*M22*1.5 ISO

335

281

~2165

≥7.50V-20

Outer

FN2008GP01AA

F2008GP

11,500

S 420*180

1850

10/28

○127

524

438

10*M22*1.5 ISO

285.75

221

~2165

≥7.50V-20

Outer

FN2707GP01AA

F2707GP

11,500

S 420*180

1850

10/28

□127

524

438

10*M22*1.5 ISO

335

281

~2165

≥7.50V-20

Outer

FN2708GP01AA

F2708GP

11,500

S 420*180

1850

10/28

□127

524

438

10*M22*1.5 ISO

285.75

221

~2165

≥7.50V-20

Outer

FP2003AM01AA

F2003AM

11,500

S 420*180

1820

10/28

○127

524

408

10*M22*1.5 ISO

335

281

~2183

≥7.50V-20

Outer

FP2006AM01AA

F2006AM

11,500

S 420*180

1820

10/28

○127

524

408

10*M22*1.5 ISO

285.75

221

~2183

≥7.50V-20

Outer

FP2007AM01AA

F2007AM

11,500

S 420*180

1820

10/28

○127

524

408

10*M22*1.5 ISO

335

281

~2135

≥7.50V-20

Outer

FP2008AM01AA

F2008AM

11,500

S 420*180

1820

10/28

○127

524

408

10*M22*1.5 ISO

285.75

221

~2135

≥7.50V-20

Outer

Note: Axle Head: FP Inner: HM518445/10 Outer: HM518445/10

Axle Head: FN Inner: HM218248/10 Outer: HM212049/11

Application of FUWA GP series axle

FUWA GP Series Axle is applicable on Ultraton Semi Trailer.
