3 Axles 40 Ton Fence Semi Trailer

Semi Trailer

3 Axles 40 Ton Fence Semi Trailer

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

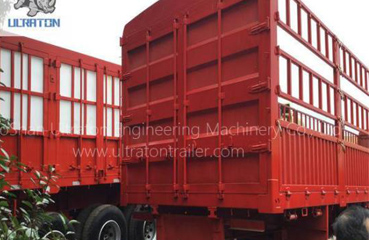

Ultraton's 3 Axles 40T Fence Semi Trailer is equipped with 3 heavy-duty semi-trailer axles to ensure loading capacity. The skeleton of the fence is welded by standard pipe and profile, flexible and popular to transport dry goods and bulk cargo on road.

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of 3 Axles 40 Ton Fence Semi Trailer

  • Heavy duty and extra durability designed for main I beam.

  • Flange and web width & thickness could be customized

  • Steel material we use is high strength steel Q345.

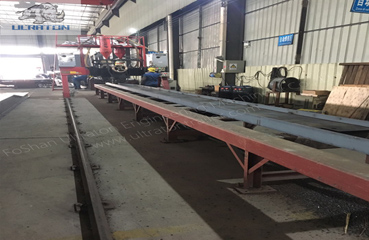

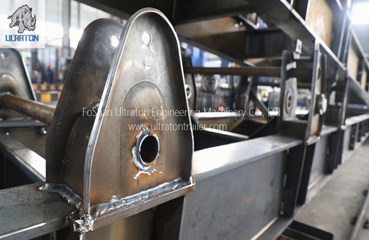

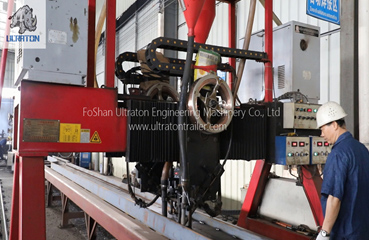

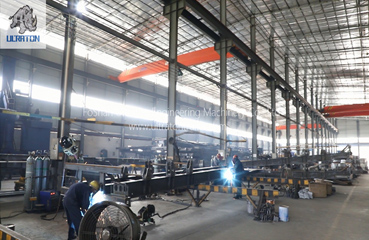

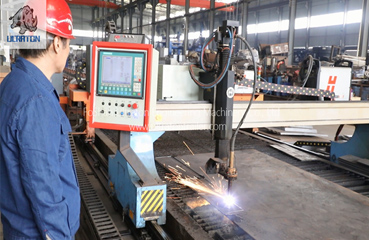

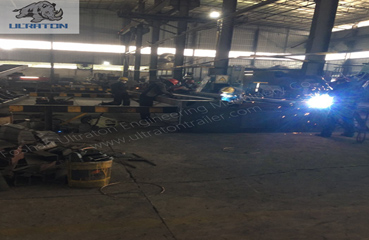

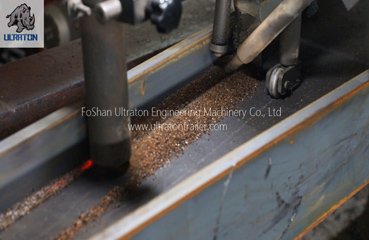

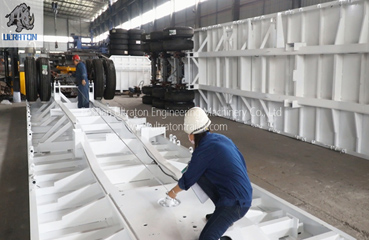

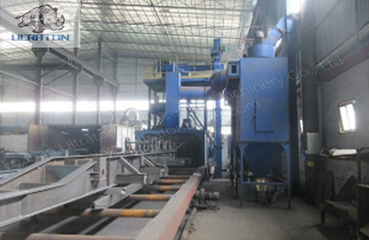

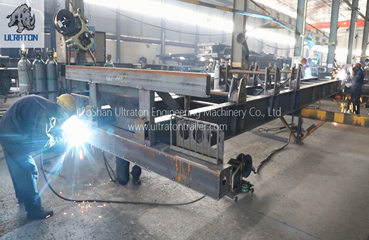

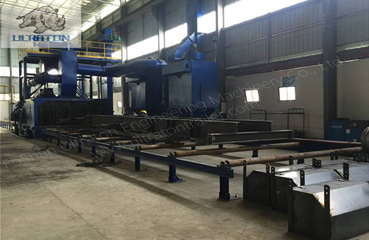

  • Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust.

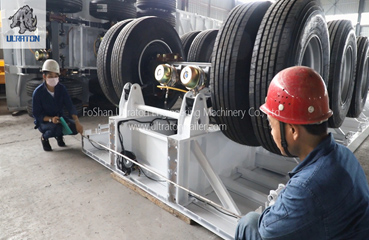

  • Superior quality and famous brand we use on specific different trailer parts. Details are outlined as below.


  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer

Advantage of 3 Axles 40 Ton Fence Semi Trailer

  1. Mature technology, could be produced in large quantity at competitive cost

  2. Practical design with high strength to transport specific goods

  3. Shipped both by container, or RORO, bulk shipment.

  4. Nice and attractive appearance with our good workmanship

  5. Fast response and flexible service from our professional team

  6. Distinct location to get full range support on delivery and manufacturing

  7. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service




Technical Parameter3 Axles 40 Ton Fence Semi Trailer
Tare Weight(KG)7000KG
Loading Capacity(KG)40000KG
Dimension(mm)13000*2500*4000
Main BeamThe height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm, Web is 8mm.
Kingpin2'' / 3.5'' ,Welded/Bolt-In
Landing GearStandard 28Ton, FUWA Brand

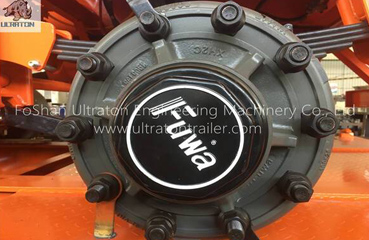

AxleStandard FUWA Brand / ULTRATON Brand
Optional: BPW Brand or HuaJing Brand
SuspensionMechanical Suspension/Air Suspension, Standard FUWA Brand/ULTRATON Brand
Optional: BPW Brand or HuaJing Brand
Leaf SpringStandard FUWA Brand/ULTRATON Brand
90mm*16*7 or 90*16*8

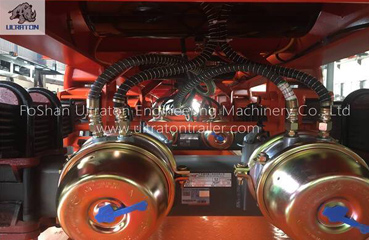

Brake systemDual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay
Emergency Valve, OPTIONS: ABS.
Electrical System24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.
Tire12.00R22.5 Tubeless,12 Units
Rim9.0*22.5,12 Units
Shot Blasting & PaintingShot Blasting and Sanding Treatment. Two Coat Of Anti Corrosion Primer and
Two Coat Of Finish Painting
Mud GuardFabricated Mud Guard 6 nos
Tool Box1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Spare Tire CarrierEquipped one sets per chassis without spare tire.
Side BoardAccording To Customer's Requirement
Front BaffleAccording To Customer's Requirement

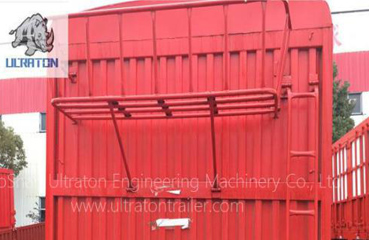

FenceAccording To Customer's Requirement
We Can Build The Trailer According To Customer's Design And Requirement.


Application of 3 Axles 40 Ton Fence Semi Trailer

Ultraton's 3 axles Fence Semi Trailer is especially appropriate for transport livestock, bottle beverage, and general stuff on the road, meadow, pasturing area.

  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer
  • 3 Axles 40 Ton Fence Semi Trailer

Other notes of 3 Axles 40 Ton Fence Semi Trailer

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc..

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc..

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
