FW22 Landing Gear Series

Semi Trailer

FW22 Landing Gear Series

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

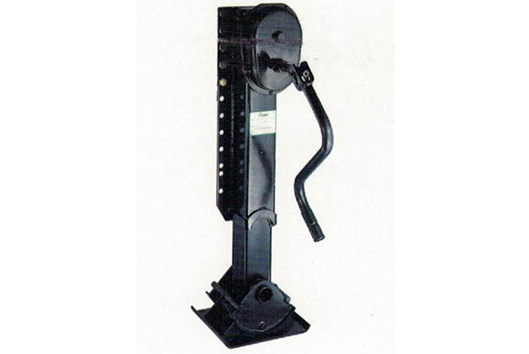

FW22 Landing Gear Series is a device with capacity 24T per pair used to support the front load of the Semi-Trailer and lift the height of the front of the Semi-Trailer through the hand-driven mechanism so as to facilitate the connection and suspension of the tractor.

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of FW22 Landing Gear Series

  • Heavy duty and extra durability designed

  • Gearbox with low temperature premium chassis lube rated for service from -30°C to +120°C

  • Maintenance free feature with grease lubricant packed jack screw

  • Double speed designed for better efficiency

  • Wider backing mounting plate for greater load bearing capacity and extended life

  • Type A, G, S, R, T shoes available for different use

  • One side operation with crank

  • Meet Safety Regulations for commercial vehicles


  • FW22 Landing Gear Series

Advantage of FW22 Landing Gear Series

  1. Mature technology and workmanship offers more stability, greater capacity and longer service life

  2. Strictly selected material and parts protect high performance.

  3. Complete quality control procedure can ensure good quality

  4. Various choice of shoes can meet different condition need

  5. Fast response and flexible service from our professional team

  6. Distinct location to get full range support on delivery and manufacturing

  7. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

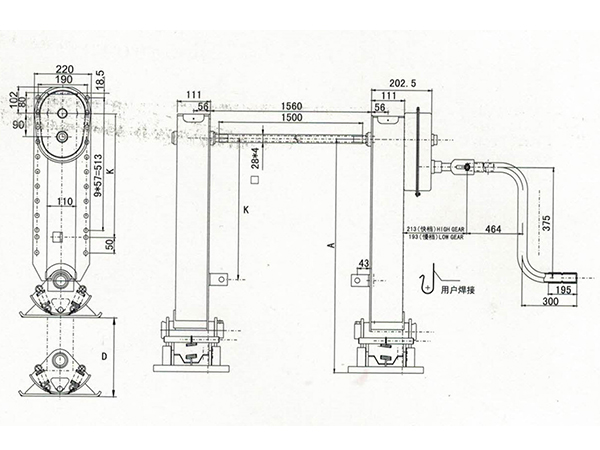

One Side Operation Landing Gear Assy

Model

Type Of Shoes

Lift D (mm)

Height A (mm)

K

FW220001A




480

FW220001LG

LG

430

738

480

FW220001R




480

FW220001S

S

430

790

480

FW220001T




480

FW220002A

A

480

832

530

FW220002LG




530

FW220002R

R

480

815

530

FW220002S




530

FW220002T

T

480

812

530

Standard Specifications

Capacity                24,000KG/Pair

Static Load              50,000KG/Pair

Weight                 94KG

Crank Force

                            Low Gear              1 mm Per Turn(mm/r) Of Handle

                            High Gear              24.6 mm Per Turn(mm/r) Of Handle

One Side Operation Crank Force        24T-32KG


Application of FW22 Landing Gear Series

FW22 Landing Gear Series is applicable on any Ultraton Semi Trailer.

Other notes of FW22 Landing Gear Series

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc .

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc.

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
