Europe Style Air Suspension Series
Europe Style Air Suspension Series is a more advanced suspension system than a traditional mechanical suspension system for comfort and flexibility.
- Overview
- Advantage
- Application
- Other notes
Overview of Europe Style Air Suspension Series
Heavy duty and extra durability designed

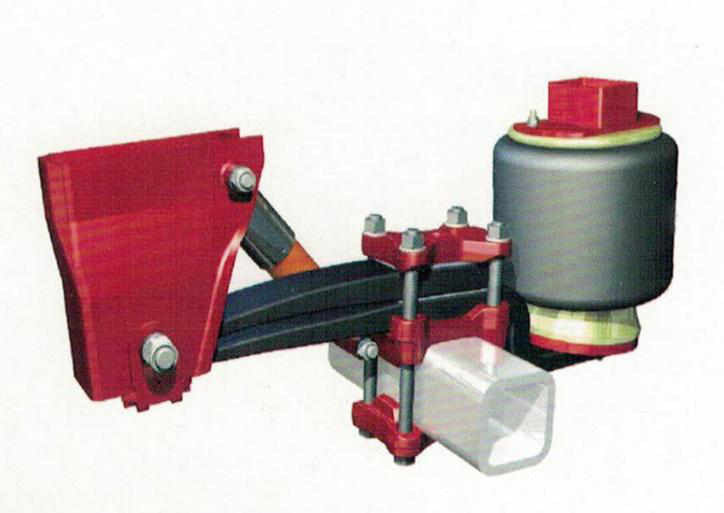

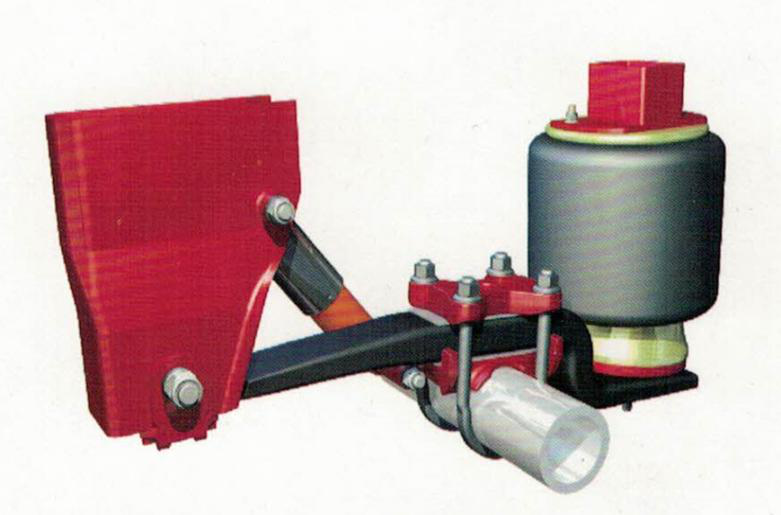

Applicable for both square beam trailer axle and round beam trailer axle
Advanced workmanship direct forging guide arm
Guide arm could be strengthened by adding one more arm
Superior quality and elastic air bag
Advantage of Europe Style Air Suspension Series
Mature technology and reasonable design ensure good quality and competitive cost.
Europe Style Air Suspension Series uses air spring as the spring element, air as the elastic medium, and the air compressibility to achieve elastic operation, which greatly improves the suspension comfort and reaction sensitivity.
Elastic element makes less noise during working.
2-3 times durable with longer life time than traditional mechanical suspension.
One piece forging guide arm ensures stronger loading capacity.
Distinct location to get full range support on delivery and manufacturing.
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.
Europe Style Air Suspension | |||||||

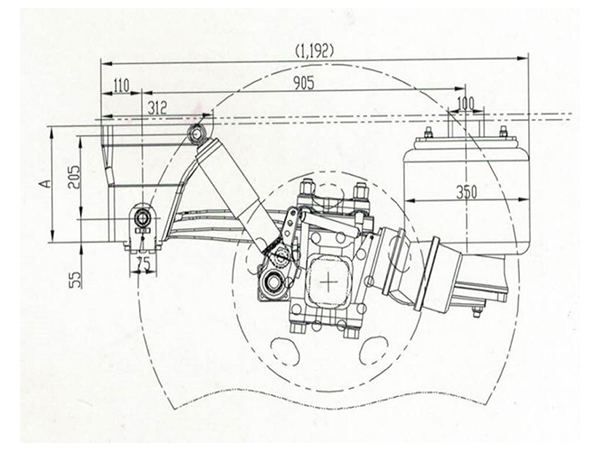

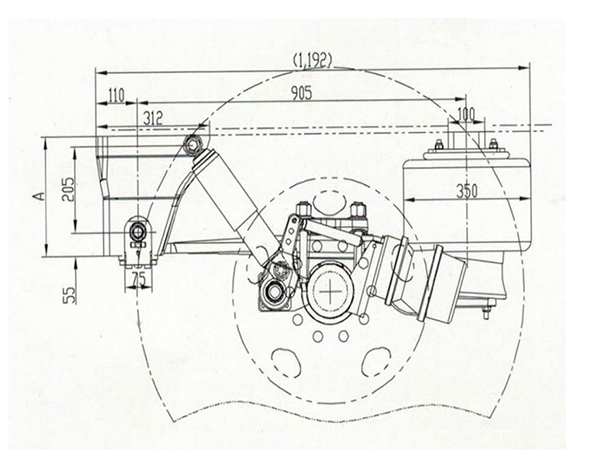

Model | Axle Tube | Axle Load (KG) | Lift Minimum Mounting Height RH(mm) | Front Bracket Height H(mm) | Suspension Center Distance H(mm) | Offset Distance V(mm) | Wheelbase (mm) |
FW53-9/240-340-HG.5.95 | ○127 | 9,000 | 240/265/290/315/340 | 285/310/335/360/390 | According To Customer Requirements | 95 | ≥1245 |
FW53-9/340-440-HS.5.95 | ○127 | 9,000 | 340/365/390/415/440 | 260/285/310/335/360 | 95 | ≥1245 | |
FW53-9/230-330HG.8.95 | ○146 | 9,000 | 230/225/280/305/330 | 285/310/335/360/390 | 95 | ≥1245 | |
FW53-9/350-450-HS.8.95 | ○146 | 9,000 | 350/375/400/425/450 | 260/285/310/335/360 | 95 | ≥1245 | |
FW53-12/245-370-RE.5.95 | ○127 | 12,000 | 245/270/295/320/345/370 | 335/360/390/410/435/460 | 95 | ≥1245 | |
FW53-12/390-485-RC.5.95 | ○127 | 12,000 | 390/410/435/460/485 | 290/310/335/360/390 | 95 | ≥1245 | |
FW53-12/475-575-RE.5.95 | ○127 | 12,000 | 475/500/525/550/575 | 360/390/410/435/460 | 95 | ≥1245 | |
FW53-12/390-485-RC.8.95 | ○146 | 12,000 | 390/410/435/460/485 | 290/310/335/360/390 | 95 | ≥1245 | |
FW53-12/475-575-RE.8.95 | ○146 | 12,000 | 475/500/525/550/575 | 360/390/410/435/460 | 95 | ≥1245 | |
FW53-13/200-270-CT.5.95 | ○127 | 13,000 | 200/220/245/270 | 290/310/335/360 | 95 | ≥1245 | |
FW53-13/390-460-CE.5.95 | ○127 | 13,000 | 390/410/435/460 | 290/310/335/360 | 95 | ≥1245 | |
FW53-13/480-580-CT.5.95 | ○127 | 13,000 | 480/505/530/555/580 | 360/390/410/435/460 | 95 | ≥1245 | |
FW53-13/250-CT.7C.95 | □150 | 13,000 | 250 | 360 | 95 | ≥1245 | |
FW53-13/405-475-CE.7B.95 | □150 | 13,000 | 405/425/450/475 | 190/310/335/360 | 95 | ≥1245 | |
FW53-13/495-CT.7B.95 | □150 | 13,000 | 495 | 360 | 95 | ≥1245 | |
Offset Distance Optional: 30,45,50,60,75,90. | |||||||
Application of Europe Style Air Suspension Series
Europe Style Air Suspension is applicable on any Ultraton Semi Trailer as important part to reduce and eliminate impact load and vibration.
