3 Axles 20ft Skeletal Container Transport Semi Truck Trailer

Semi Trailer

3 Axles 20ft Skeletal Container Transport Semi Truck Trailer

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

Ultron's 3 Axles 20ft Skeleton Semi Shipping Container Trailer, or 20ft Skeletal Trailer for short, is equipped with 3 pieces of semi-trailer axles to ensure loading capacity and commonly used as a basic design. Extendable Chassis and Multipurpose Container Trailer can be modified according to the customer's requirement. We offer high-quality tri axle skeletal trailer for sale.



  • Overview
  • Advantage
  • Application
  • Other notes

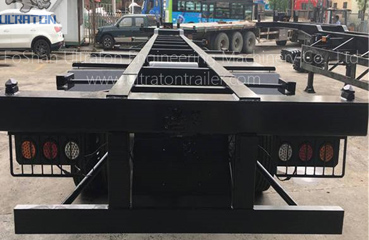

Overview of 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer

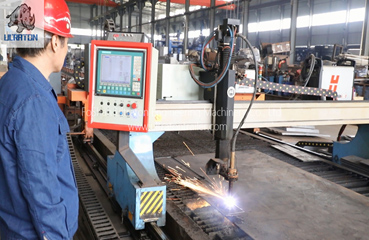

  • Scientific design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements

  • Flange and web width & thickness could be customized

  • 16 manganese high strength steel is used in heavy duty and extra durability designed for main I beam.

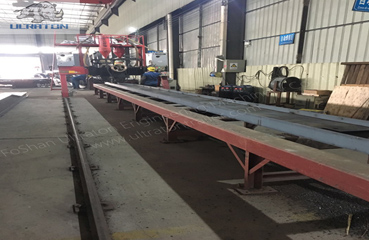

  • Specific auto hydraulic I beam straightening machine for more accuracy

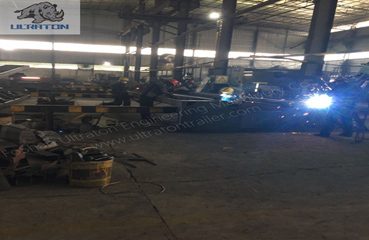

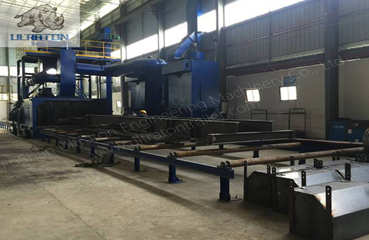

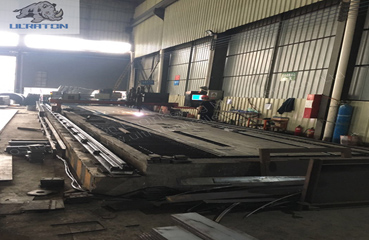

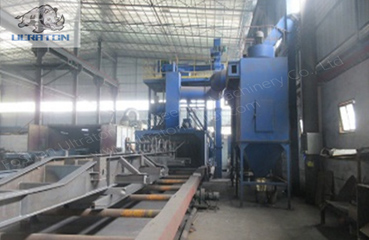

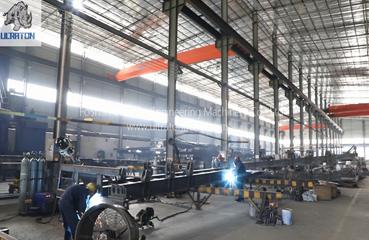

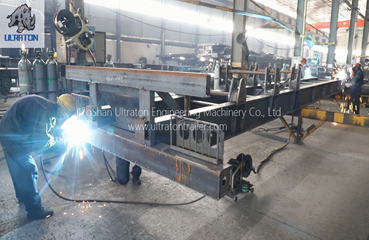

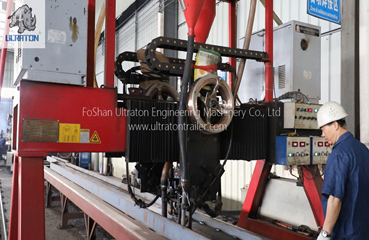

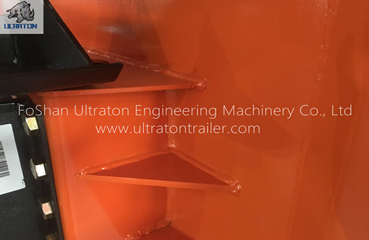

  • Welded by automatic submerged-arc process. Complete chassis shot blasting to clean rust.

  • Superior quality and famous brand we use on specific different trailer parts. Details are outlined as below.


  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer

Advantage of 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer

  1. Mature technology, could be produced in large quantity at competitive cost

  2. Lighter weight with high strength to transport container

  3. Shipped both by container, or RORO, bulk shipment

  4. Nice and attractive appearance with our good workmanship

  5. Fast response and flexible service from our professional team

  6. Distinct location to get full range support on delivery and manufacturing

  7. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service




Technical Parameter3 Axles 20ft Skeleton Container Transport Semi Truck Trailer
Tare Weight(KG)5000KG
Loading Capacity(KG)40000KG
Dimension(mm)8500*2500*1500
Main BeamThe height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm.
Kingpin2''/ 3.5'',Welded/Bolt-In

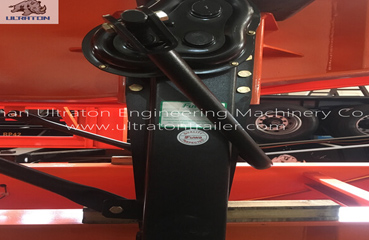

Landing GearStandard 28Ton , FUWA Brand
AxleStandard FUWA Brand / ULTRATON Brand
Optional : BPW Brand or HuaJing Brand
SuspensionMechanical Suspension/Air Suspension,Standard FUWA Brand/ULTRATON Brand
Optional : BPW Brand or HuaJing Brand
Leaf SpringStandard FUWA Brand/ULTRATON Brand
90mm*16*7 or 90*16*8
Brake systemDual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay
Emergency Valve,OPTIONS: ABS.
Electrical System24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.
Tire12.00R22.5 Tubeless,12 Units
Rim9.0*22.5,12 Units
Shot Blasting & PaintingShot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and
Two Coat Of Finish Painting
Mud GuardFabricated Mud Guard 6 nos
Tool Box1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Container Locks4/8/12 Screw type
Spare Tire CarrierEquipped one sets per chassis without spare tire.
We Can Build The Trailer According To Customer’s Design And Requirement.


Application of 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer

Ultraton's 20ft tri axle skeletal trailer could be used to transport standard sizes of container in ports or from site to site on road. Suitable for logistic company, terminal ports, shipping lines, forwarders, truck manufacturer


  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer
  • 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer

Other notes of 3 Axles 20ft Skeletal Container Transport Semi Truck Trailer

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc..

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

  • We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc..

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
