FUWA Outboard Drum Series Axle is one of the most conventional American style design which is commonly used worldwide.

  • Overview
  • Advantage
  • Application
  • Other notes

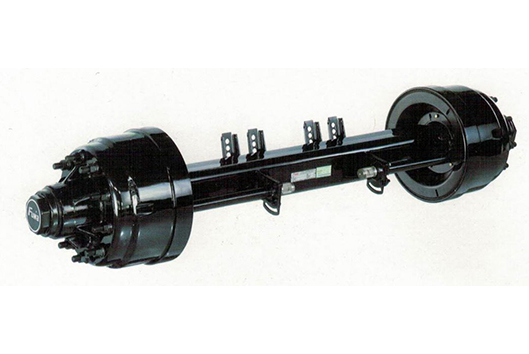

Overview of FUWA outboard drum series axle

  • Integrated one-piece design axle beam with special heat treatment made by low carbon alloy steel 20Mn2.

  • Spider camshaft and anchor pin bores are machined with reference to the spindle after the welding operation

  • Reasonable design of spindle processed by heat hardening

  • High performance non-asbestos brake linings of good quality and service life

  • Improved seals at camshafts for better and safer grease lubricant

  • Axle beam is available with round 127mm diameter and square 150mm type

  • Track length and camshaft length could be customized

  • Loading capacity is available with 11.5T to 16T

  • Track length and camshaft length could be customized

  • Brake drum type is available with outboard type

  • Optional for automatic slack adjuster and ABS system


  • FUWA outboard drum series axle

Advantage of FUWA outboard drum series axle

  1. Strictly selected raw material and parts ensure more stability and greater capacity.

  2. Special processed spindle with induction hardened bearing journals provide superior fatigue capability.

  3. Accurate machining process increases stability and braking performance.

  4. Strictly selected sealing parts protect braking safety.

  5. Complete quality control procedure including metallographical examination, pressure reversal testing, magnetic flaw detecting, etc can ensure good quality.

  6. Brake drum outboard mounting type is easy for disassemble and more friendly for maintenance.

  7. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.



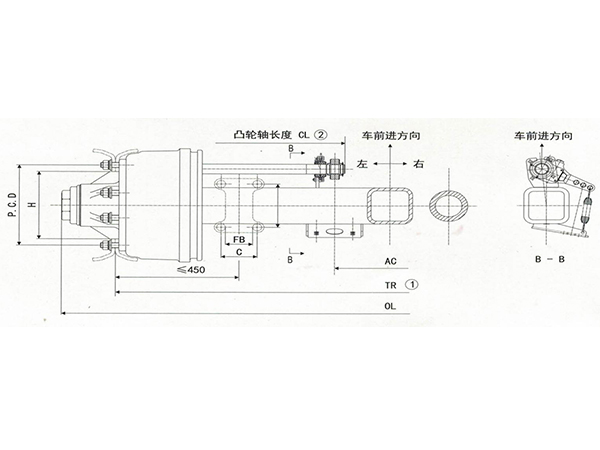

Axle Type

105 (km/h)

Max.Capacity(KG)

'S' Cam Brake

Series

ø *

Width

(mm)

Track TR (mm)

Spline No.

Axle Beam (mm)

Center Distance Of Chamber

Wheel Fixing

Total Length (mm)

Recommended Wheel

New Model

Old Model






CL (mm)

AC (mm)

Studs (mm)

P.C.D. (mm)

Ø H (mm)



FP2001XE01AA

F2001

11,500

S 420*180

1820

1.625'-37

○127

543

370

10*7/8’’-11 BSF

335

281

~2183

≥7.50V-20

FP2002XE01AA

F2002

11,500

S 420*180

1820

1.625'-37

○127

543

370

8*M20*1.5 JAP

285

221

~2183

≥7.50V-20

FP2003XE01AA

F2003

11,500

S 420*180

1820

1.625'-37

○127

543

370

10*M22*1.5 ISO

335

281

~2183

≥7.50V-20

FP2004XE01AA

F2004

11,500

S 420*180

1820

1.625'-37

○127

543

370

10*M20*1.5 JAP

285.75

221

~2183

≥7.50V-20

FP2006XE01AA

F2006

11,500

S 420*180

1820

1.625'-37

○127

543

370

10*M22*1.5 ISO

285.75

221

~2183

≥7.50V-20


FP2401XE01AA

F2401

13,000

S 420*180

1840

1.625'-37

□150

543

390

10*7/8’’-11 BSF

335

281

~2203

≥7.50V-20

FP2402XE01AA

F2402

13,000

S 420*180

1840

1.625'-37

□150

543

390

8*M20*1.5 JAP

285

221

~2203

≥7.50V-20

FP2403XE01AA

F2403

13,000

S 420*180

1840

1.625'-37

□150

543

390

10*M22*1.5 ISO

335

281

~2203

≥7.50V-20

FP2404XE01AA

F2404

13,000

S 420*180

1840

1.625'-37

□150

543

390

10*M20*1.5 JAP

285.75

221

~2203

≥7.50V-20

FP2406XE01AA

F2406

13,000

S 420*180

1840

1.625'-37

□150

543

390

10*M22*1.5 ISO

285.75

221

~2203

≥7.50V-20

FP2403XE02AA

F2403/Bll

13,000

S 420*220

1840

1.625'-37

□150

543

346

10*M22*1.5 ISO

335

281

~2203

≥7.50V-20


FB2461XE01AA

F2403AD

15,000

S 420*180

1850

1.625'-37

□150

543

396

10*M22*1.5 ISO

335

281

~2200

≥8.00V-20

FB2061XE02AA

F2061Bll

16,000

S 420*220

1850

1.625'-37

○127

543

354

10*M22*1.5 ISO

335

281

~2200

≥8.00V-20

FB2461XE02AA

F2461Bll

16,000

S 420*220

1850

1.625'-37

□150

543

354

10*M22*1.5 ISO

335

281

~2200

≥8.00V-20
