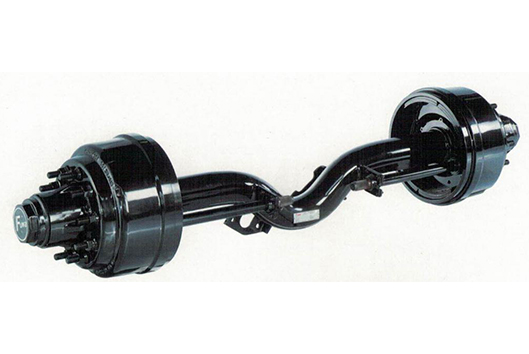

FUWA Drop Center Axle Series is special design with concave axle beam that can satisfy your different need.

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of FUWA Drop Centre Axle Series

  • Integrated one-piece design axle beam with special heat treatment made by low carbon alloy steel 20Mn2.

  • Special processed spindle with induction hardened bearing journals

  • Spider camshaft and anchor pin bores are machined with reference to the spindle after the welding operation

  • High performance non-asbestos brake linings of good quality and service life

  • Improved seals at camshafts for better and safer grease lubricant

  • Axle beam is available with round 127mm diameter

  • Track length and camshaft length could be customized

  • Axle meets USA and Australian standard


  • FUWA Drop Centre Axle Series

Advantage of FUWA Drop Centre Axle Series

  1. Mature technology and workmanship offers more stability, greater capacity and longer service life.

  2. Special processed spindle journals provide superior fatigue capability.

  3. Accurate machining process increases stability and braking performance.

  4. Strictly selected sealing parts protect braking safety.

  5. Unique axle beam design can meet complicated road condition.

  6. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.




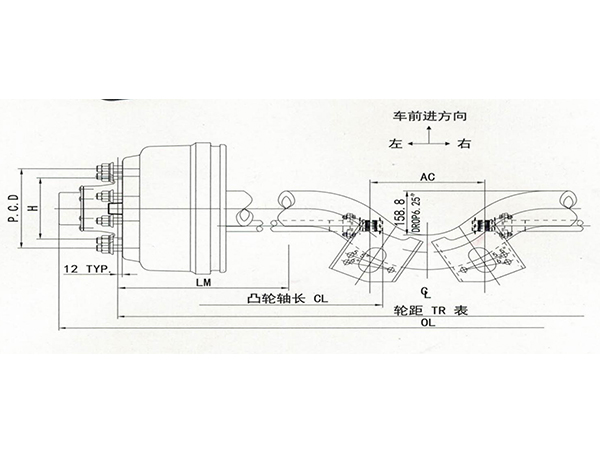

Axle Type

Axle Beam Size(mm)

105(km/h)

Max. Capacity kg/1bs

'S' Cam Brake

Series Ø*Width(mm)

Track/ Center Distance Of Brake Chamber (mm)

Spring Center Installation

Spline

Wheel Fixing

Total Length

OL(mm)

Recommended Wheel

Note

1816/71.5

1841.5/72.5

1968.5/77.8

LM(mm/Inch)

Studs (mm)

P.C.D. (mm)

Ø H (mm)

CL

AC

CL

AC

CL

AC

FN6008AM-001

○127*15

10,200/22,500

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

6''Drop Center Axle

○127*19

11,300/25,000

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FN6007AM-001

○127*15

10,200/22,500

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

6''Drop Center Axle

○127*19

11,300/25,000

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FP6006AM-001

○127*15

10,200/22,500

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

6''Drop Center Axle

○127*19

11,300/25,000

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FP6003AM-001

○127*15

10,200/22,500

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

6''Drop Center Axle

○127*19

11,300/25,000

S 420*180

574.8

305.5

587.6

305.5

651

305.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FN6008AM-091

○127*15

9,000/22,500

S 420*180

530

368

542.8

368

606.3

368

425.5/16.75

28

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5

6''Low-Loader&Drop Center Axle

○127*19

10,200/25,000

S 420*180

530

368

542.8

368

606.3

368

425.5/16.75

28

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5


FN6008AM-008

○127*15

10,200/22,500

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

6''Reverse Assembly Drop Center Axle

○127*19

11,300/25,000

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FN6007AM-008

○127*15

10,200/22,500

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

6''Reverse Assembly Drop Center Axle

○127*19

11,300/25,000

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FN6006AM-008

○127*15

10,200/22,500

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

6''Reverse Assembly Drop Center Axle

○127*19

11,300/25,000

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FN6003AM-008

○127*15

10,200/22,500

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

6''Reverse Assembly Drop Center Axle

○127*19

11,300/25,000

S 420*180

524

406.5

536.8

406.5

600

406.5

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FN6008AM-092

○127*15

9,000/20,000

S 420*180

530

368

542.8

368

606.3

368

425.5/16.75

28

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5

6''Reverse Assembly  Low-Loader &Drop Center Axle

○127*19

10,200/22,500

S 420*180

530

368

542.8

368

606.3

368

425.5/16.75

28

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5


FN6008-802

○127*15

9,000/20,000

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

8''Drop Center Axle

○127*19

10,200/22,500

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FN6007-802

○127*15

9,000/20,000

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

8''Drop Center Axle

○127*19

10,200/22,500

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FP6006-802

○127*15

9,000/20,000

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

8''Drop Center Axle

○127*19

10,200/22,500

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FP6003-802

○127*15

9,000/20,000

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

8''Drop Center Axle

○127*19

10,200/22,500

S 420*180

549.3

359

562

359

625.5

359

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20


FN6008AM-901

○127*15

9,000/20,000

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

9''Drop Center Axle

○127*19

10,200/22,500

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FN6007AM-901

○127*15

9,000/20,000

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

9''Drop Center Axle

○127*19

10,200/22,500

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FP6006AM-901

○127*15

9,000/20,000

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

9''Drop Center Axle

○127*19

10,200/22,500

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

285.75

221

~2130

7.5V-20

FP6003AM-901

○127*15

9,000/20,000

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

9''Drop Center Axle

○127*19

10,200/22,500

S 420*180

524

404

536.8

404

600

404

425.5/16.75

28

10*M22*1.5 ISO

335

281

~2130

7.5V-20

FN6008AM-992

○127*15

9,000/20,000

S 420*180

452

370

502

370

530

370

425.5/16.75

10

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5

9''Reverse Assembly  Low-Loader &Drop Center Axle

○127*19

10,200/22,500

S 420*180

452

370

502

370

530

370

425.5/16.75

10

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5

FN6008AM-993

○127*15

9,000/20,000

S 420*180

452

370

502

370

530

370

425.5/16.75

10

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5

9''Reverse Assembly  Low-Loader &Drop Center Axle

○127*19

10,200/22,500

S 420*180

452

370

502

370

530

370

425.5/16.75

10

8*M22*1.5 ISO

275

220.8

~2130

19.5*7.5

Note: Axle Head: FP Inner: HM518445/10   Outer: HM518445/10

    Axle Head: FN Inner: HM218248/10   Outer: HM212049/11
