3 Axles 60 Ton Fence Semi Trailer

Semi Trailer

3 Axles 60 Ton Fence Semi Trailer

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

For even larger tonnage requirements, Ultraton's 3 Axles 60T Fence Semi Trailer is strongly recommended as your wise choice. It is equipped with 3 pieces of 20T heavy duty semi-trailer axles to ensure the loading capacity, suitable to transport dry goods and bulk cargo in large quantity on road.

  • Overview
  • Advantage
  • Application
  • Other notes

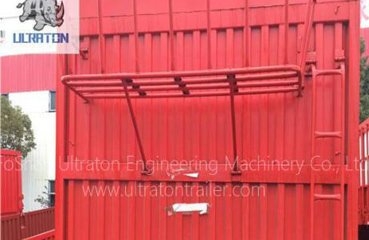

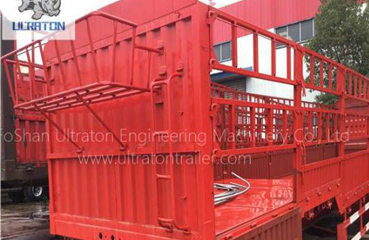

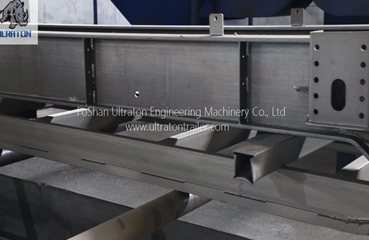

Overview of 3 Axles 60 Ton Fence Semi Trailer

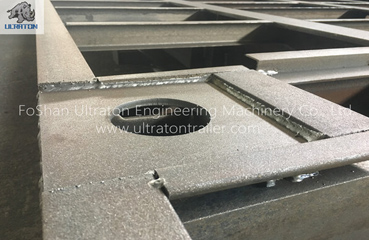

  • 16 manganese high strength steel is used in heavy duty and extra durability designed for main I beam.

  • Flange and web width & thickness could be customized

  • Optimized design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements

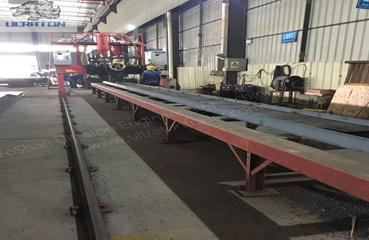

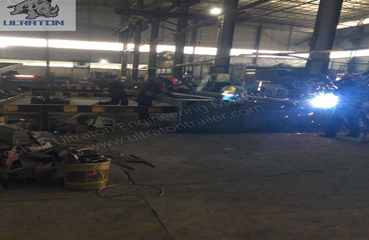

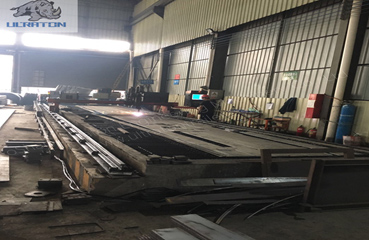

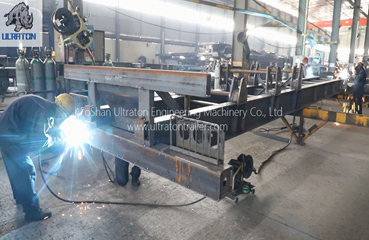

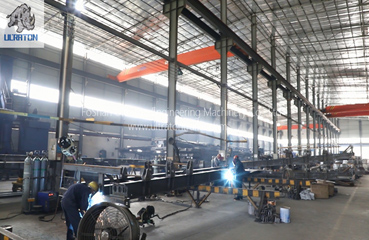

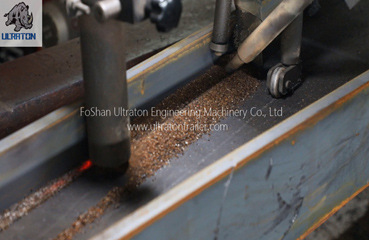

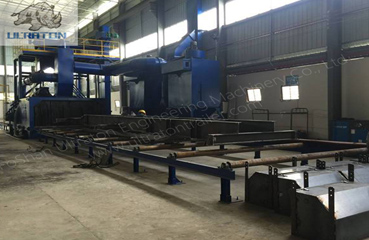

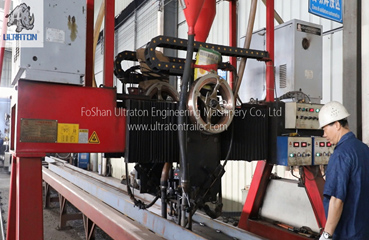

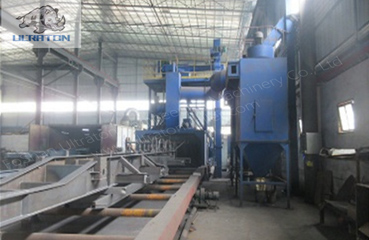

  • Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress

  • Superior quality and famous brand we use on specific different trailer parts. Details are outlined as below.


  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer

Advantage of 3 Axles 60 Ton Fence Semi Trailer

  1. Distinct location and resource to get full range support on delivery and manufacturing at competitive cost

  2. Scientific design, reasonable load sharing to transport specific goods

  3. Professional and efficient arrangement on shipping

  4. Skilled and experienced workmanship ensure outstanding quality

  5. Fast response and flexible service from our professional team

  6. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service





Technical Parameter3 Axles 60 Ton Fence Semi Trailer
Tare Weight(KG)7000KG
Loading Capacity(KG)60000KG
Dimension(mm)13000*2500*4000
Main BeamThe height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm, Web is 8mm.
Kingpin2'' / 3.5'' ,Welded/Bolt-In
Landing GearStandard 28Ton, FUWA Brand
AxleStandard FUWA Brand / ULTRATON Brand
Optional: BPW Brand or HuaJing Brand
SuspensionMechanical Suspension/Air Suspension, Standard FUWA Brand/ULTRATON Brand
Optional: BPW Brand or HuaJing Brand
Leaf SpringStandard FUWA Brand/ULTRATON Brand
90mm*16*7 or 90*16*8

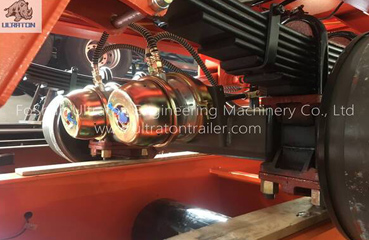

Brake systemDual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay
Emergency Valve, OPTIONS: ABS.
Electrical System24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.
Tire12.00R22.5 Tubeless,12 Units
Rim9.0*22.5,12 Units
Shot Blasting & PaintingShot Blasting and Sanding Treatment. Two Coat Of Anti Corrosion Primer and
Two Coat Of Finish Painting
Mud GuardFabricated Mud Guard 6 nos
Tool Box1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Spare Tire CarrierEquipped one sets per chassis without spare tire.
Side BoardAccording To Customer's Requirement
Front BaffleAccording To Customer's Requirement
FenceAccording To Customer's Requirement
We Can Build The Trailer According To Customer's Design And Requirement.


Application of 3 Axles 60 Ton Fence Semi Trailer

Ultraton's 3 axles 60T Fence Semi Trailer is especially appropriate for transport livestock, bottle beverage, and general stuff on the road, meadow, pasturing area for even more heavy duty need and occasion when you find not enough for 40T or 50T.

  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer
  • 3 Axles 60 Ton Fence Semi Trailer

Other notes of 3 Axles 60 Ton Fence Semi Trailer

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc..

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc..

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
