FUWA VALX series axle

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

FUWA VALX Series Axle is an advanced European design axle model passed the demanding test which can meet the high-end requirement.

  • Overview
  • Advantage
  • Application
  • Other notes

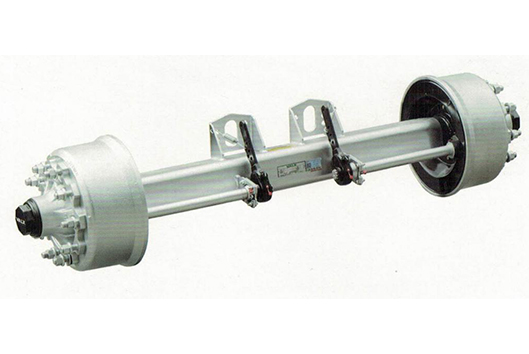

Overview of FUWA VALX series axle

  • High-strength seamless cold-drawn shaft tube, the basic structure of which does not need to be welded

  • Axles feature a new brake system that provides 30% more braking capability than conventional axles and with a lightweight design

  • Axle assembly and all key components have been thoroughly tested and fatigue tested at the MIT Vehicle Technology Testing Center in the UK to the highest standards in the industry

  • Higher precision manufacturing hub units than European standards ensure accurate bearing preloading and uniform bearing forces.

  • SKF's high-temperature, long-life oil seal specially developed for the VALX axle

  • TIMKEN provides high-precision bearings with high-quality fully synthetic extreme pressure greases

  • Axle beam is optional for round 146mm diameter and square 150mm

  • Camshaft length could be customized

  • Applicable with double aluminum tire


  • FUWA VALX series axle

Advantage of FUWA VALX series axle

  1. Strictly selected parts ensure more stability and greater capacity.

  2. Special processed spindle with induction hardened bearing journals provide superior fatigue capability.

  3. VALX axle passed 1.3 million fatigue tests at the MIT laboratory in the UK and is recognized in the world's three most demanding test sites.

  4. The shaft tube made by high strength special material and workmanship reducing the risk of material degradation and stronger than any European tube.

  5. High-precision CNC machining ensures accurate pre-assembly of the bearing system and uniform distribution of forces on the outer ring of the bearing.

  6. The hub system can be maintenance-free for 2 years or 400,000 km, extending the maintenance time of the axle and improving the user's Operational efficiency.

  7. Lightweight design makes each axle 50--60KG less compared to conventional axles.

  8. Wheel hub system simplifies maintenance procedures, reduces downtime for users, and improves operational efficiency.

  9. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

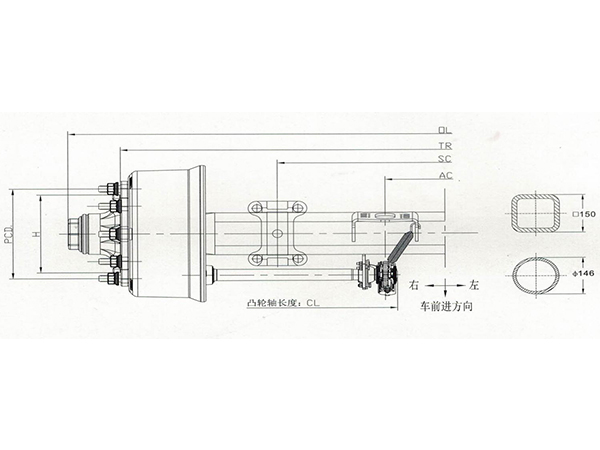

Axle TypeAxle Beam105 (km/h) Max. Capacity (kg)‘S’ Cam Brake Series ø * Width (mm)Spring Center  SC (mm)Track TR (mm)Spring No.Center Distance Of ChamberWheel FixingTotal Length OL (mm)Recommended Wheel
CL (mm)AC (mm)Studs (mm)P.C.D. (mm)Ø H (mm)
FM24GP01AA-001□15010,000Ø 420*180100018201060433610*M22*1.5 ISO335281~211522.5''
FM24GP01AA-007□15010,000Ø 420*1801200-130020401064747010*M22*1.5 ISO335281~211522.5'
FM24GP01AA-203□15010,000Ø 420*180100018201060433610*M22*1.5 ISO335281~211522.5''
FM26GP01AA-007○14610,000Ø 420*180100018201060433610*M22*1.5 ISO335281~211522.5''
FM26GP01AA-011○14610,000Ø 420*1801200-130020401064747010*M22*1.5 ISO335281~211522.5''


Application of FUWA VALX series axle

FUWA VALX Series AXLE  is recommended to use on Tank Semi Trailer,  High-pressure gas long tubular Semi Trailer, Fully Enclosed Semi Trailer, Vehicle Transport Semi Trailer, tobacco, medicine, electronic transport Semi-Trailer etc..

Other notes of FUWA VALX series axle

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc .

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc.

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
