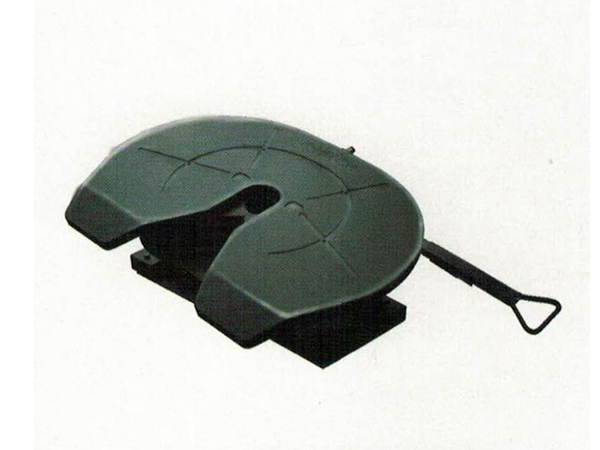

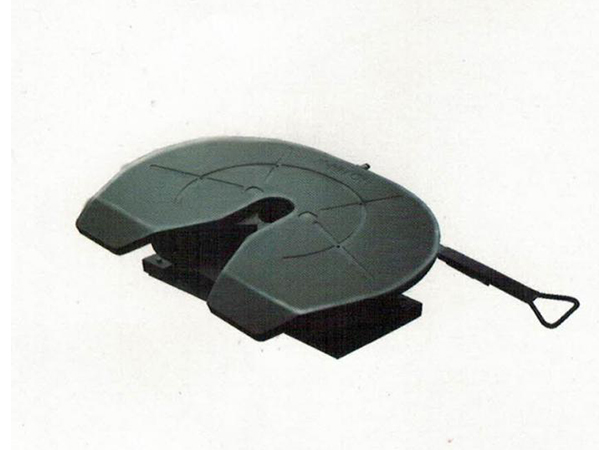

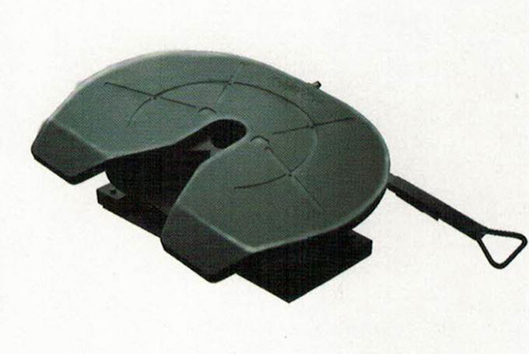

FW78S and FW79S Fifth Wheel Series

Semi Trailer

FW78S and FW79S Fifth Wheel Series

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

FW78S&FW79S Fifth Wheel Series is an important connection part working with king pin with vertical load 28T, used to pull semi-trailer, mainly consist of the cover plate, saddle base, locking mechanism. Its seat cover plate has two tails that adopt the great arc shape.

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of FW78S and FW79S Fifth Wheel Series

  • Heavy duty and extra durability designed

  • Adopt unique large radius design and multiple lubrication design

  • Universal interchangeable wearable collar and locking assembly is available

  • Special design with different supporting plate, pendulum shaft, rubber mat at the bottom to carry out bigger Oscillation

  • In comply with ADR standard

  • Various oscillations available for different need


Advantage of FW78S and FW79S Fifth Wheel Series

  1. Mature technology and workmanship offers more stability, greater capacity and longer service life.

  2. Strictly selected material and parts protect high performance.

  3. Complete quality control procedure can ensure good quality.

  4. Special design for bigger oscillation is good for service life under complicated road condition, improve the riding comfort and operatability.

  5. Distinct location to get full range support on delivery and manufacturing.

  6. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

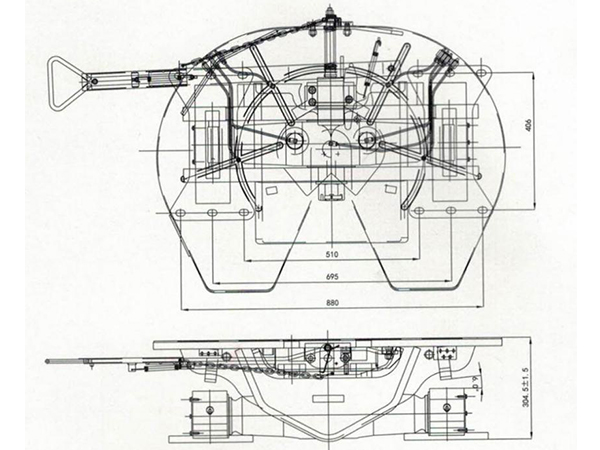

FW78S Fifth-Wheel

Model

Mounting Height (mm)

Vertical Load (KG)

D-Value (KN)

Oscillations (a)

Lateral Angular (a)

Net Weight (KG)

FW78S

304.5

28,000

175

≥18°

394.688

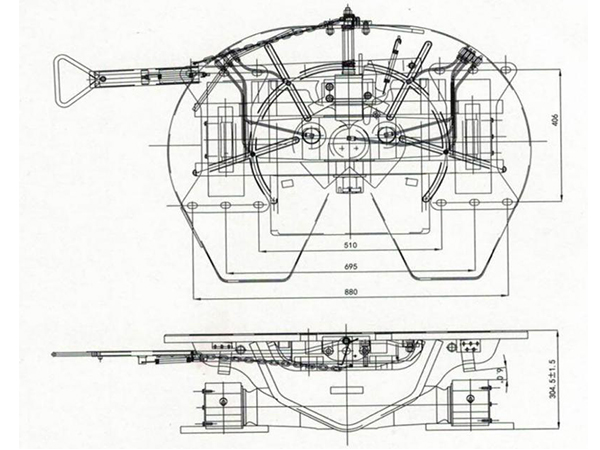

FW79S Fifth-Wheel

Model

Mounting Height (mm)

Vertical Load (KG)

D-Value (KN)

Oscillations (a)

Lateral Angular (a)

Net Weight (KG)

FW79S

304.5

28,000

240

≥18°

396.51


Application of FW78S and FW79S Fifth Wheel Series

FW78S&FW79S Fifth Wheel Series is applicable on any Ultraton Semi Trailer.

Other notes of FW78S and FW79S Fifth Wheel Series

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc.

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc.

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
