60-150 Ton Low Bed Semi Trailer
Ultraton's 60-150T Low Bed Semi Trailer with a concave beam-type frame is a durable and smart solution for different kinds of heavy-duty load. On different purposes, removable gooseneck, extendable ramp, even hydraulic pendulum axle, cantilever suspension, driven modules, power pack unit can be equipped for performance enhancement according to customer's requirement.
- Overview
- Advantage
- Application
- Other notes

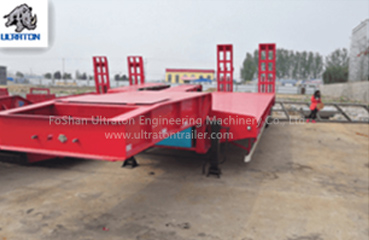

Overview of 60-150 Ton Low Bed Semi Trailer

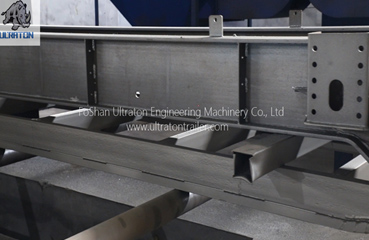

Heavy duty and extra durability designed for concave beam.
Scientific design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements
Steel material we use is high strength steel Q345.

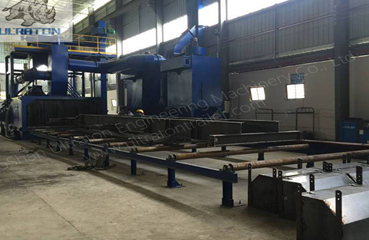

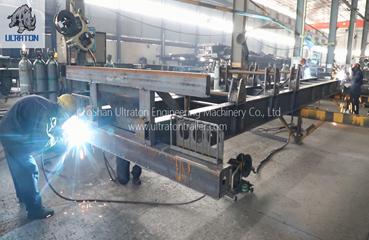

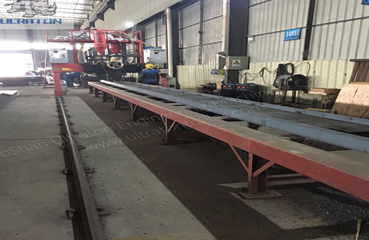

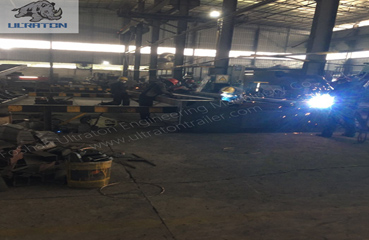

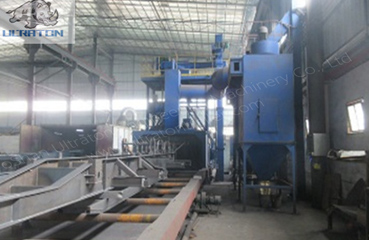

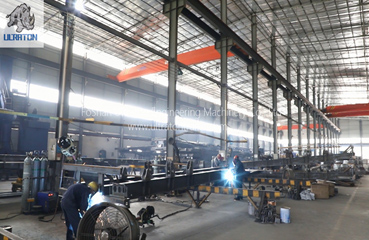

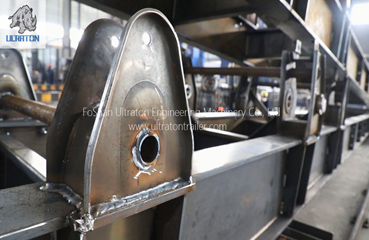

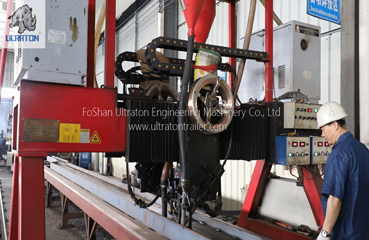

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress

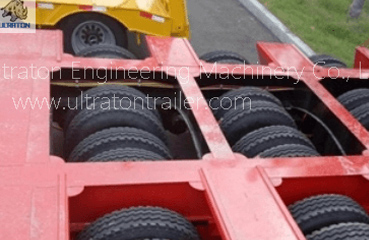

Axles could be optional for hydraulic pendulum axle;
Suspension could be optional for cantilever suspension

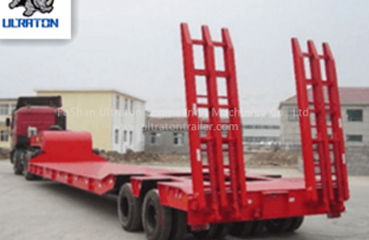

Extendable ramp is optional
Advantage of 60-150 Ton Low Bed Semi Trailer
High tensile structure steel, robust and durable construction with high bending moment, high concentrated loading bearing capacity.
Practical design with high strength to transport heavy duty goods
Packing solution in CKD/ SKD/CBU is optional according to different project.

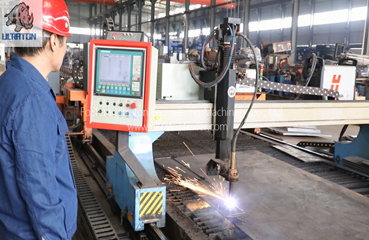

Advanced manufacturing equipment and mature workmanship to ensure outstanding performance
Complete and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
| Technical Parameter | 60-150 Ton Low Bed Semi Trailer |
| Tare Weight(KG) | 9500KG |
| Loading Capacity(KG) | 60000KG~150000KG |
| Dimension(mm) | 13000*2500*3000 |
| Main Beam | The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm, Web is 8mm. |
| Kingpin | 2'' / 3.5'' ,Welded/Bolt-In |
| Landing Gear | Standard 28Ton, FUWA Brand |
| Axle | Standard FUWA Brand / ULTRATON Brand Optional: BPW Brand or HuaJing Brand |
| Suspension | Mechanical Suspension/Air Suspension, Standard FUWA Brand/ULTRATON Brand Optional: BPW Brand or HuaJing Brand |
| Leaf Spring | Standard FUWA Brand/ULTRATON Brand 90mm*16*7 or 90*16*8 |

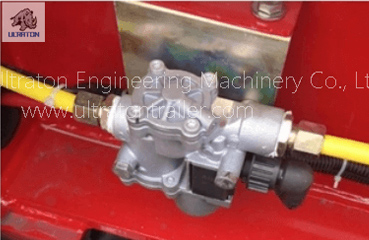

| Brake system | Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay Emergency Valve, OPTIONS: ABS. |
| Electrical System | 24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor. |
| Tire | 12.00R22.5 Tubeless,12 Units |
| Rim | 9.0*22.5,12 Units |
| Shot Blasting & Painting | Shot Blasting and Sanding Treatment. Two Coat Of Anti Corrosion Primer and Two Coat Of Finish Painting |
| Mud Guard | Fabricated Mud Guard 6 nos |
| Tool Box | 1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs) |
| Spare Tire Carrier | Equipped one sets per chassis without spare tire. |
| We Can Build The Trailer According To Customer's Design And Requirement. | |
Application of 60-150 Ton Low Bed Semi Trailer
Ultraton's 60-150T Low Bed Semi Trailer could be used to handle heavy duty load, especially transport tractors, buses, special purpose vehicles, rail vehicles, mining machinery, forestry machinery, military machinery and other heavily loaded goods.
