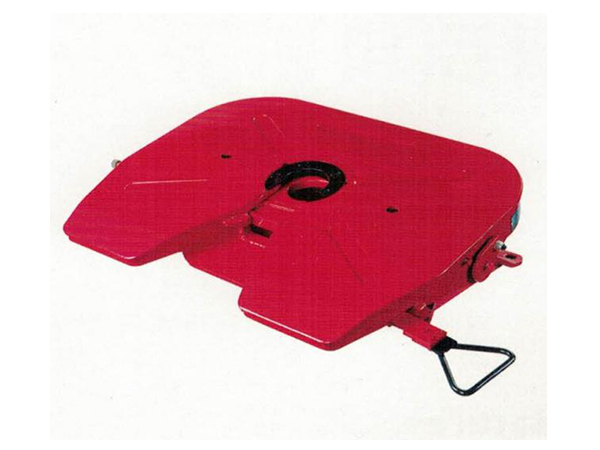

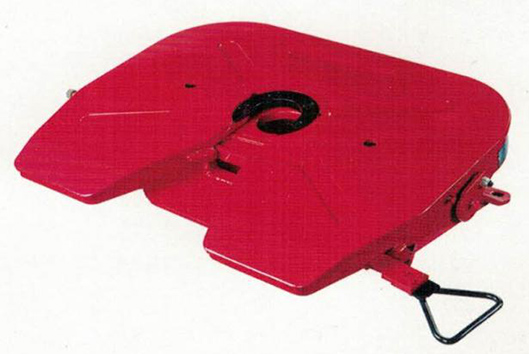

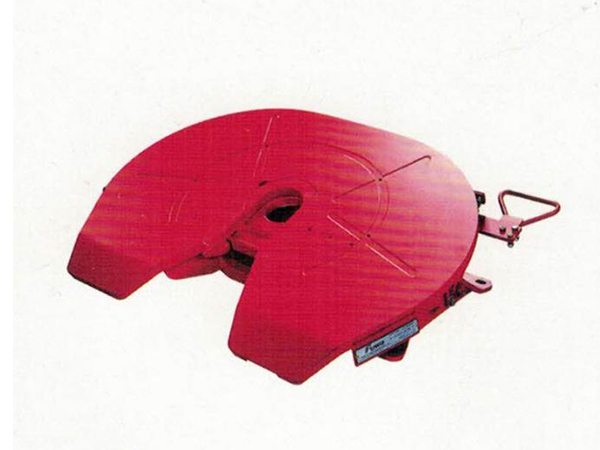

FW79H and FW79F Fifth Wheel Series
FW79H & FW79F Fifth-Wheel Series is flat, slightly rearward turntable that keeps the trailer connected to the tractor at all times and also provides a center of rotation to control turns with vertical load 28T.
- Overview
- Advantage
- Application
- Other notes
Overview of FW79H and FW79F Fifth Wheel Series
Heavy duty and extra durability designed
Adopt one-piece design for stronger structure
Universal interchangeable wearable collar and locking assembly is available
In comply with ADR standard
Various oscillations available for different need
Advantage of FW79H and FW79F Fifth Wheel Series
Mature technology and workmanship offers more stability, greater capacity and longer service life
Strictly selected material and parts protect high performance.
Complete quality control procedure can ensure good quality
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

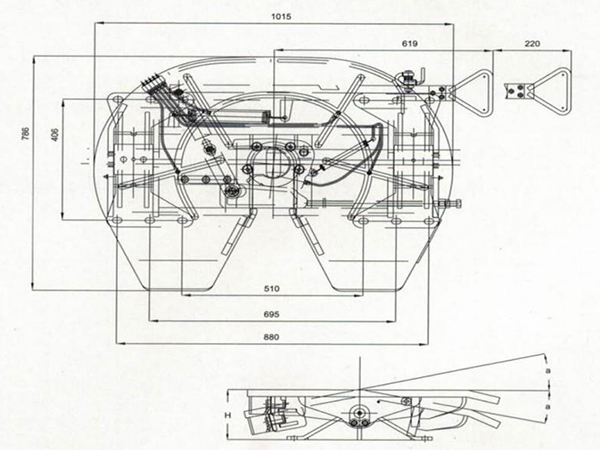

FW79H Fifth-Wheel | |||||
Model | Mounting Height (mm) | Vertical Load (KG) | D-Value (KN) | Oscillations (a) | Net Weight (KG) |
FW79H-1 | 160 | 28,000 | 190 | 8° | 169.91 |
FW79H-2 | 172 | 28,000 | 190 | 15° | 171.27 |
FW79H-3 | 182 | 28,000 | 190 | 17° | 172.63 |

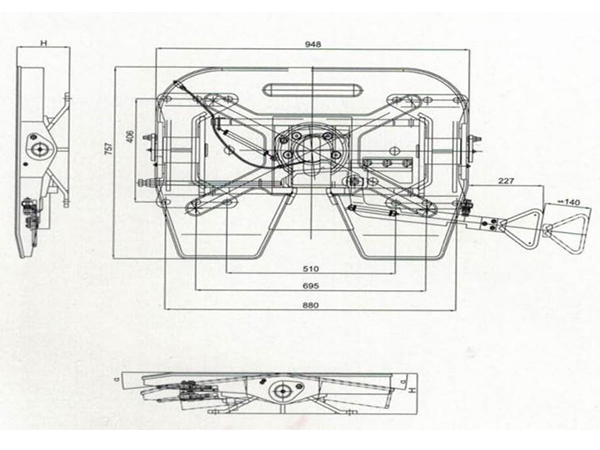

FW79F Fifth-Wheel | |||||
Model | Mounting Height (mm) | Vertical Load (KG) | D-Value (KN) | Oscillations (a) | Net Weight (KG) |
FW79F-1 | 172 | 28,000 | 190 | 13° | 211 |
FW79F-2 | 185 | 28,000 | 190 | 15° | 212 |
FW79F-3 | 195 | 28,000 | 190 | 18° | 214 |
Application of FW79H and FW79F Fifth Wheel Series
FW79H & FW79F Fifth-Wheel Series is applicable on any Ultraton Semi Trailer.
