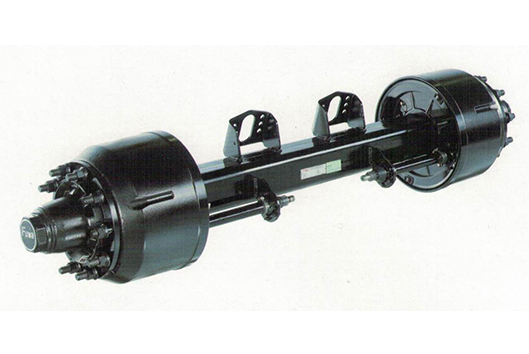

Overview of FUWA German style series axle

Integrated one-piece design axle beam with special heat treatment made by low carbon alloy steel 20Mn2.
More reasonable design of spindle with taper shape.
Spider camshaft and anchor pin bores are machined with reference to the spindle after the welding operation.
High performance non-asbestos brake linings of good quality and service life.
Improved seals at camshafts for better and safer grease lubricant.
Axle beam is available with round 127 diameter and square 150mm type.
Loading capacity is available with 9T, 12T, 14T, 16T & 18T.
Track length and camshaft length could be customized.
Optional for automatic slack adjuster and ABS system.

Advantage of FUWA German style series axle

Mature technology and workmanship offers more stability, greater capacity and longer service life.
Special processed spindle journals provide superior fatigue capability.
Accurate machining process increases stability and braking performance.
Strictly selected sealing parts protect braking safety.
Unique design can meet complicated road condition.
Good heat dissipation and high temperature resistance.
Durable design makes long maintenance cycle.
Good performance on braking good for service life of tire.
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

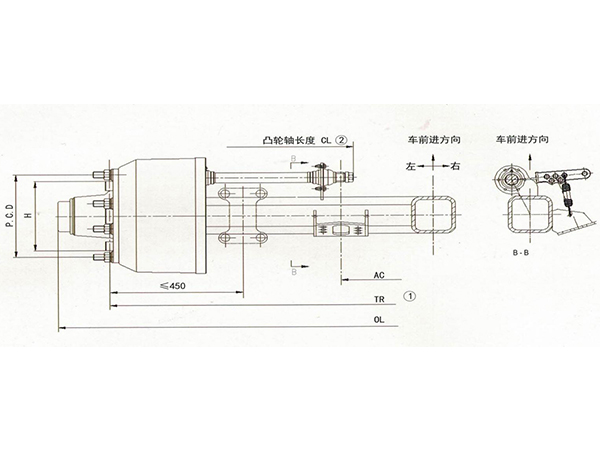

Axle Type

105 (km/h)

Max. Capacity(KG)

'S' Cam Brake

Series

Ø *

Width

(mm)

Track TR (mm)

Spline No.

Axle Beam (mm)

Center Distance Of Chamber

Wheel Fixing

Total Length (mm)

Recommended Wheel

New Model

CL (mm)

AC (mm)

Studs (mm)

P.C.D. (mm)

Ø H (mm)

BN2234BP13AA

9,000

S 420*180

2040

10

□120

734

382

10*M22*1.5 ISO

335

281

~2299

≥7.50V-20

BQ2432BP01AA

12,000

S 420*200

1850

10

□150

641

284

10*M22*1.5 ISO

335

281

~2163

≥7.50V-20

BR2431BP14AA

14,000

S 420*200

1820

10

□150

550

414

10*M24*1.5 ISO

335

281

~2171

≥8.00V-20

BS2436BP01AA

16,000/18,000

S 420*200

1850

10

□150

641

414

10*M24*1.5 ISO

335

281

~2171

≥8.00V-20

Note: Axle Head: BR Inner: 32219 Outer: 33215

BQ Inner: 33118 Outer: 33213

BN Inner: 33118 Outer: 33213

BQ Inner: 32222 Outer: 32314

Application of FUWA German style series axle

FUWA German Style Series Axle is especially suitable for vehicles running under high temperature circumstance and complicated road condition on any Ultraton Semi Trailer.
