FW88 Type suspension Series

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

FW88 Type Suspension Series is a widely applicable model of normal mechanical suspension that helps to guide the direction and to reduce the impact load and vibration by 7 pieces of duty steel leaf springs.

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of FW88 Type suspension Series

  • Heavy duty and extra durability designed in comply with National Standard and ADR

  • Superior quality material SUP9 or 60Si2Mn optional on leaf spring

  • Typical structure consists of elastic elements, shock absorbers, and guiding mechanisms  serve as buffering, damping and force transmission

  • Equipped with 7x90x16 leaf spring

  • Flexible Design for 1 or 2 or 3 axles installation with 13ton each

  • Applicable for square beam trailer axle for heavy duty purpose

  • Installation is applicable for overslung

Advantage of FW88 Type suspension Series

  1. Mature technology and reasonable design ensure good quality and competitive cost.

  2. FW88 Type Suspension Series uses steel leaf spring as the spring element, to achieve stronger rigidity and strength.

  3. The grinding block's  angle is consistent with the direction in which the leaf spring is forced to expand.

  4. Design of grease lubrication nozzle helps reduce sliding friction between the leaf spring and the equilizer wear block.

  5. Reasonable design can effectively reduce the friction of the tire and prolongs the service life of the tire during the process of frequent vehicle running.

  6. Simple structure makes easy maintenance.

  7. Distinct location to get full range support on delivery and manufacturing.

  8. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

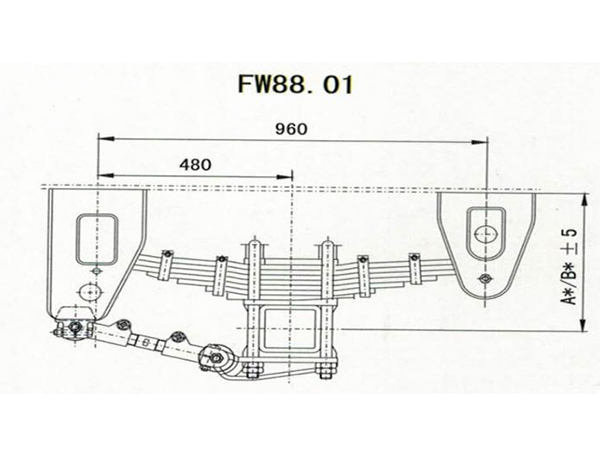

FW88.01 Singel Suspension With Seven Leaf Spring.   Dimension:7*90*16

Model

Height Of Towing Plate (mm)

A (mm)

B (mm)

Axle Load (KG)

FW880101A

1180

441

411

13,000*1

FW880102A

1220

481

451

13,000*1

FW880103A

1250

511

481

13,000*1

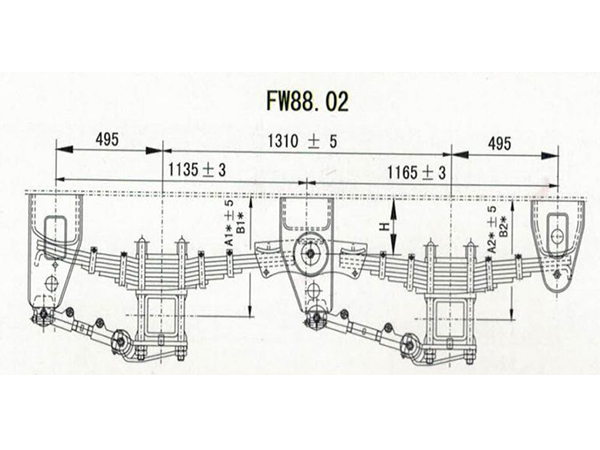

FW88.02 Tandem Suspension With Seven Leaf Spring.   Dimension:7*90*16

Model

Height Of Towing Plate (mm)

A1 (mm)

B1 (mm)

A2 (mm)

B2 (mm)

H (mm)

Axle Load (KG)

FW880201A

1180

441

411

433

403

183

13,000*2

FW880202A

1220

481

451

473

443

223

13,000*2

FW8802034

1250

511

481

503

473

253

13,000*2

FW880201B

1180

422

392

414

384

164

13,000*2

FW880202B

1220

462

432

454

424

204

13,000*2

FW880203B

1250

492

462

484

454

234

13,000*2

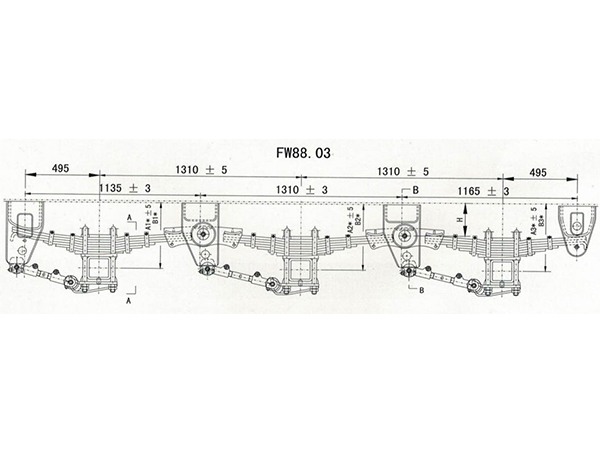

FW88.03 Tri  Suspension With Seven Leaf Spring.   Dimension:7*90*16

Model

Height Of

Towing Plate (mm)

A1(mm)

B1(mm)

A2 (mm)

B2 (mm)

A3 (mm)

B3 (mm)

H (mm)

Axle Load (KG)

FW880301A

1180

457

427

448

418

435

405

185

13,000*3

FW880302A

1220

497

467

488

458

475

445

225

13,000*3

FW880303A

1250

527

497

518

488

505

475

255

13,000*3

FW880301B

1180

438

408

429

399

416

386

166

13,000*3

FW880302B

1220

478

448

469

439

456

426

206

13,000*3

FW880303B

1250

508

478

499

469

486

456

236

13,000*3

Note: (1) Dimension''A1、A2、A3'' : Unladen

(2) Dimension''B1、B2、B3'' :Rated Laden(For Reference Only)

(3'U'Bolt Nuts'; Tightening Torque: 600N.M.-650N.M.

(4) Nut Torque Of Rocker Shaft : 350N.M.-400N.M.

(5) Torque Of Tighter Bolts For Harper And Rods:120N.M.-160N.M.

(6) Torque Of Spring Bolts: 110N.M.-120N.M.

(7) Suitable For Round/Square Axles

(8) Spring Quantity Is Optional
