3 Axles 55T Flatbed Container Transport Semi Truck Trailer
If you need more loading capacity, Ultraton's 3 axles 55T Flatbed Semi Trailer for standard size of the container can meet your different needs on container transport. It can be modified according to customer's requirement.
- Overview
- Advantage
- Application
- Other notes

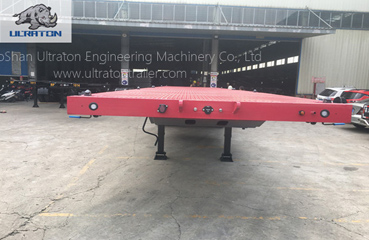

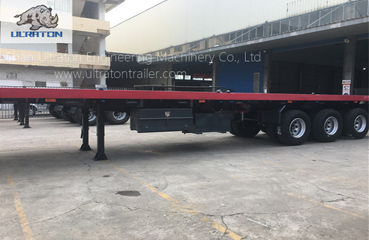

Overview of 3 Axles 55T Flatbed Container Transport Semi Truck Trailer
16 manganese high strength steel is used in heavy duty and extra durability designed for main I beam.
Flange and web width & thickness could be customized
Optimized design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements

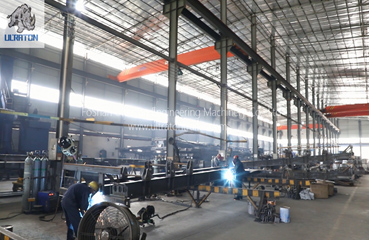

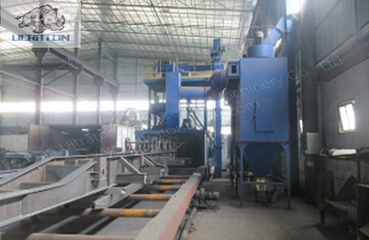

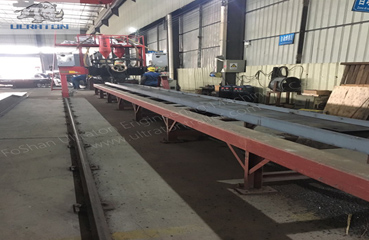

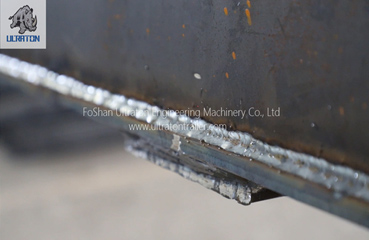

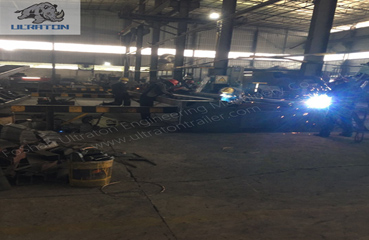

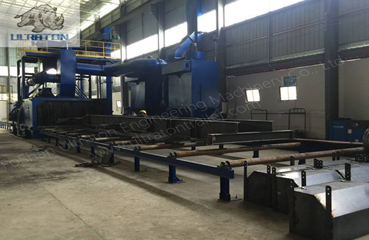

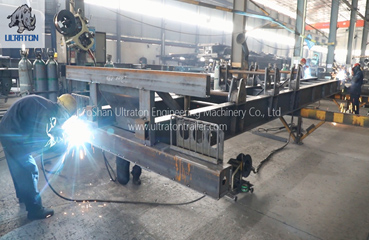

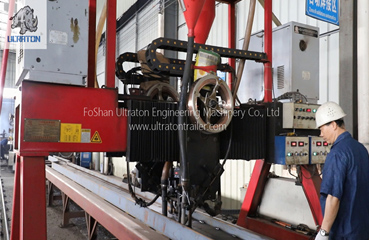

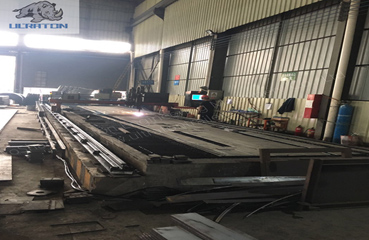

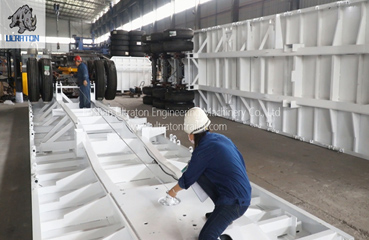

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress
Different thickness of diamond pattern floor plate is optional

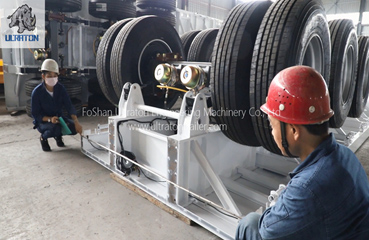

Axles could be optional for German type or American type

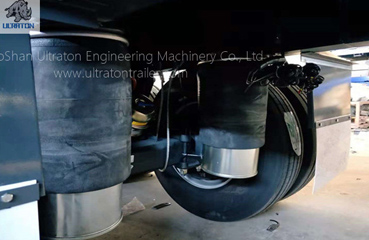

Suspension is optional for mechanical suspension, air suspension
Other core components are of superior quality and famous brand. Details are outlined as below.
Advantage of 3 Axles 55T Flatbed Container Transport Semi Truck Trailer
Mature technology, could be produced in large quantity at competitive cost
Lighter weight with high strength to transport container
Packing solution in CKD/ SKD/CBU is optional according to different project.

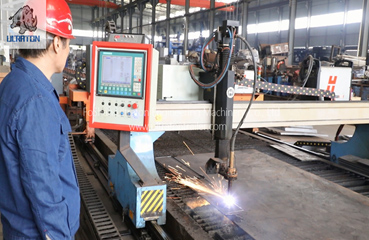

Advanced manufacturing equipment and workmanship to ensure outstanding performance
Complete and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
| Technical Parameter | 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer |
| Tare Weight(KG) | 7000KG |
| Loading Capacity(KG) | 55000KG |

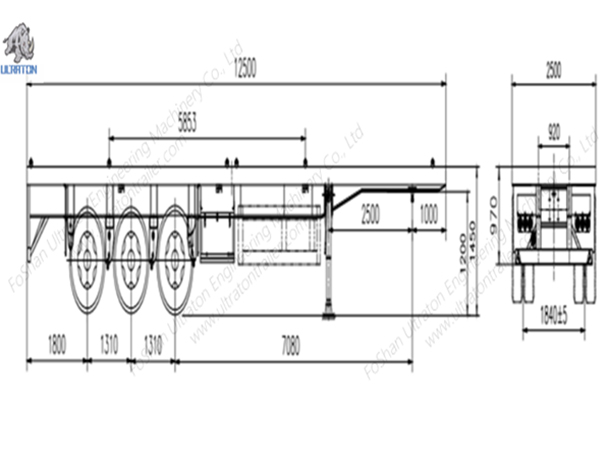

| Dimension(mm) | 13950*2500*1500 |
| Main Beam | The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm. |
| Kingpin | 2''/ 3.5'',Welded/Bolt-In |

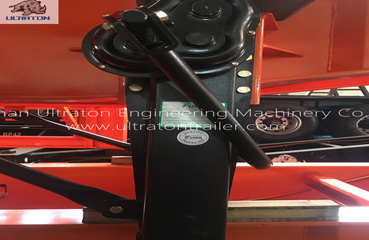

| Landing Gear | Standard 28Ton , FUWA Brand |
| Axle | Standard FUWA Brand / ULTRATON Brand |
| Optional : BPW Brand or HuaJing Brand | |
| Suspension | Mechanical Suspension/Air Suspension,Standard FUWA Brand/ULTRATON Brand |
| Optional : BPW Brand or HuaJing Brand | |
| Leaf Spring | Standard FUWA Brand/ULTRATON Brand |
| 90mm*16*7 or 90*16*8 | |
| Brake system | Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay |
| Emergency Valve,OPTIONS: ABS. | |
| Electrical System | 24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor. |
| Tire | 12.00R22.5 Tubeless,12 Units |
| Rim | 9.0*22.5,12 Units |
| Shot Blasting & Painting | Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and |
| Two Coat Of Finish Painting | |
| Mud Guard | Fabricated Mud Guard 6 nos |
| Tool Box | 1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs) |
| Container Locks | 4/8/12 Screw type |
| Spare Tire Carrier | Equipped one sets per chassis without spare tire. |
| Front Baffle | According To Customer’s Requirement |
| We Can Build The Trailer According To Customer’s Design And Requirement. | |
Application of 3 Axles 55T Flatbed Container Transport Semi Truck Trailer
Ultraton's 3 axles 55T Flatbed Semi Trailer could be used as a basic model to transport standard size of container in ports or from site to site on road. Suitable for logistic company, terminal ports, shipping lines, forwarders, truck manufacturer
