FW35 Landing Gear Series

Semi Trailer

FW35 Landing Gear Series

Efficiency on Wheels: Advantages and Applications of Flatbed Container Semi Truck Trailers

FW35 Landing Gear Series is a device with capacity 28T per pair used to support the front load of the Semi-Trailer and lift the height of the front of the Semi-Trailer through the hand-driven mechanism so as to facilitate the connection and suspension of the tractor.

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of FW35 Landing Gear Series

  • Extra heavy duty and durability designed

  • Advanced gearbox with low temperature premium chassis lube rated for service from -30°C to +120°C

  • Maintenance free feature with grease lubricant packed jack screw

  • High gear and low gear is optional for different speed

  • Widen and strengthen backing mounting plate is optional for greater load bearing capacity and extended life

  • Type A, G, S, R, T , C shoes available for different use

  • One side operation with crank

  • Design of crank is optional

  • More choice on lifting distance

  • Meet Safety Regulations for commercial vehicles


Advantage of FW35 Landing Gear Series

  1. Mature technology and workmanship offers more stability, greater capacity and longer service life.

  2. Strictly selected material and parts protect high performance.

  3. Complete quality control procedure can ensure good quality.

  4. Various choice of backing mounting plate and shoes can meet different condition need.

  5. Fast response and flexible service from our professional team.

  6. Distinct location to get full range support on delivery and manufacturing.

  7. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

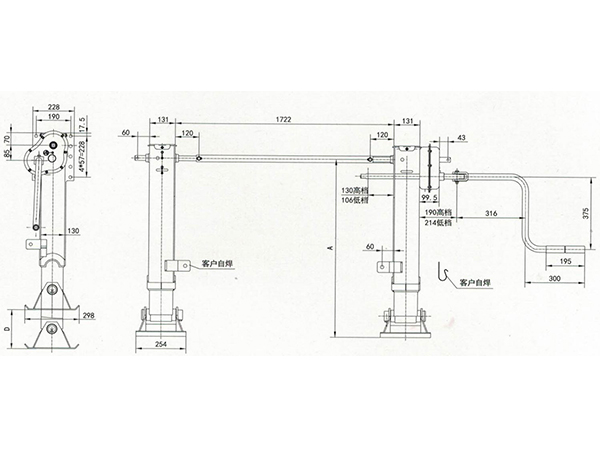

One Side Operation Landing Gear Assy

Model

Types Of Shoes

Lift D (mm)

Height A (mm)

FW3514C

C

360

652

FW3514A

A

360

743

FW3514G

G

360

699

FW3514R

R

360

726

FW3514S

S

360

751

FW3514T

T

360

723

FW3514LT

LT

360

662

FW3517C

C

430

722

FW3517A

A

430

813

FW3517G

G

430

769

FW3517R

R

430

796

FW3517S

S

430

821

FW3517T

T

430

793

FW3517LT

LT

430

732

FW3519C

C

480

772

FW3519A

A

480

863

FW3519G

G

480

819

FW3519R

R

480

846

FW3519S

S

480

871

FW3519T

T

480

843

FW3519LT

LT

480

782

Standard Specifications

Capacity             28,000KG/Pair

Static Load           80,000KG/Pair

Weight              110KG

Crank Force

                            Low Gear           1.0mm Per Turn(mm/r) Of Handle

                            High Gear           7.5mm Per Turn(mm/r) Of Handle

One Side Operation Crank Force        28T-33.5KG


Application of FW35 Landing Gear Series

FW35 Landing Gear Series is applicable on any Ultraton Semi Trailer

Other notes of FW35 Landing Gear Series

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc .

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc.

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
