3 axles 60 Ton Semi Side Dump Trailer

Semi Trailer

3 axles 60 Ton Semi Side Dump Trailer

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

Ultron's 3 Axles 60 ton Semi Side Dump Trailer is an effective solution for the difficulty to turn around or needs to be changed with the direction of unloading.  It can be modified according to customer's requirement.

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of 3 axles 60 Ton Semi Side Dump Trailer

  • 16 manganese high strength steel is used in heavy duty and extra durability designed for main I beam, larger design than others of the same weight to balance stress better

  • Flange and web width & thickness could be customized

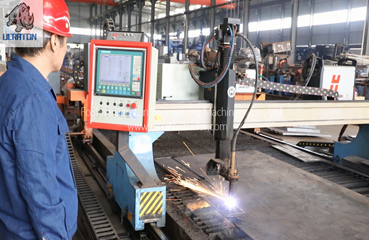

  • Optimized design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements

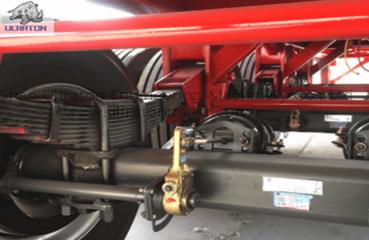

  • Three-axle balanced design is equipped with a mass balance block between the front and rear leaf springs

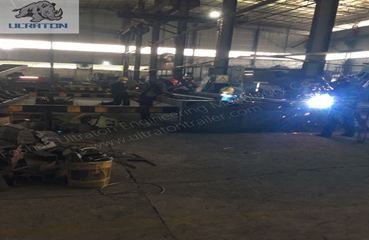

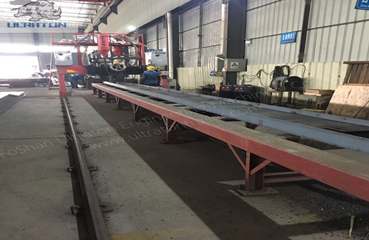

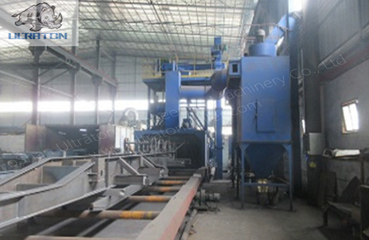

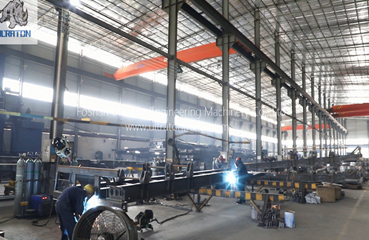

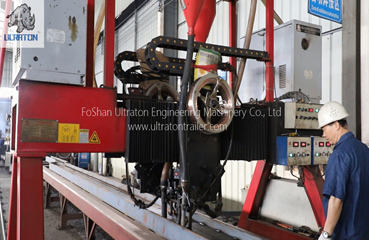

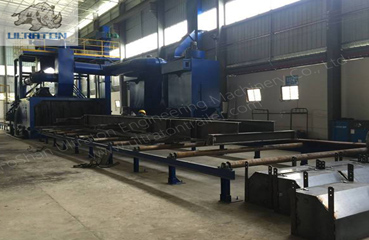

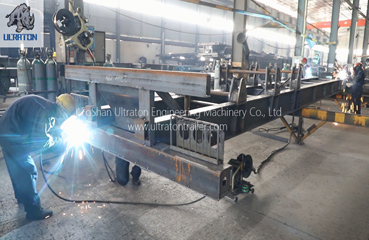

  • Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust.

  • Cargo boxes can be optional for ordinary rectangle cargo boxes, U-shaped boxes, mining buckets, and separate rear door or multiple doors cargo boxes

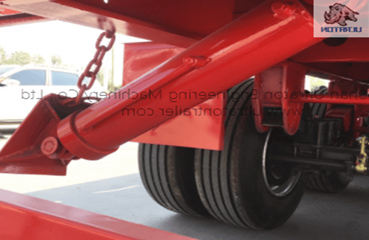

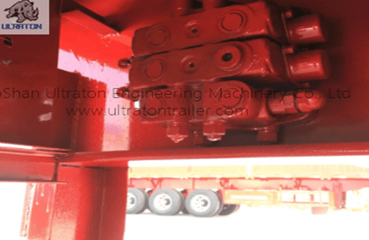

  • Superior quality and famous brand we use on specific different trailer parts especially hydraulic cylinder. Details are outlined as below


  • 3 axles 60 Ton Semi Side Dump Trailer
  • 3 axles 60 Ton Semi Side Dump Trailer
  • 3 axles 60 Ton Semi Side Dump Trailer
  • 3 axles 60 Ton Semi Side Dump Trailer

Advantage of 3 axles 60 Ton Semi Side Dump Trailer

  1. Different numbers and types of hydraulic cylinder is optional for solution

  2. Unloading efficiency is greatly improved, the labor is saved, and the transportation cost is reduced

  3. Shipped both by container, or RORO, bulk shipment

  4. Nice and attractive appearance with our good workmanship

  5. Fast response and flexible service from our professional team

  6. Distinct location to get full range support on delivery and manufacturing

  7. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service




Technical ParameterSemi Side Dump Trailer
Tare Weight(KG)9000KG
Loading Capacity(KG)60000KG
Dimension(mm)13000*2500*3400
Main BeamThe height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm.
Kingpin2''/ 3.5'',Welded/Bolt-In
Landing GearStandard 28Ton , FUWA Brand
AxleStandard FUWA Brand / ULTRATON Brand
Optional : BPW Brand or HuaJing Brand
SuspensionMechanical Suspension/Air Suspension,Standard FUWA Brand/ULTRATON Brand
Optional : BPW Brand or HuaJing Brand
Leaf SpringStandard FUWA Brand/ULTRATON Brand
90mm*16*7 or 90*16*8
Brake systemDual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay
Emergency Valve,OPTIONS: ABS.

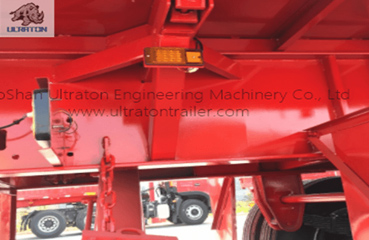

Electrical System24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.
Tire12.00R22.5 Tubeless,12 Units
Rim9.0*22.5,12 Units
Shot Blasting & PaintingShot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and
Two Coat Of Finish Painting
Mud GuardFabricated Mud Guard 6 nos
Tool Box1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Spare Tire CarrierEquipped one sets per chassis without spare tire.
Front BaffleAccording To Customer’s Requirement
We Can Build The Trailer According To Customer’s Design And Requirement.


Application of 3 axles 60 Ton Semi Side Dump Trailer

Ultraton's 3 axles Semi Side Dump Trailer could be used on road maintenance and for cargo with a small rest angle.


  • 3 axles 60 Ton Semi Side Dump Trailer
  • 3 axles 60 Ton Semi Side Dump Trailer
  • 3 axles 60 Ton Semi Side Dump Trailer
  • 3 axles 60 Ton Semi Side Dump Trailer
  • 3 axles 60 Ton Semi Side Dump Trailer
  • 3 axles 60 Ton Semi Side Dump Trailer
  • 3 axles 60 Ton Semi Side Dump Trailer
  • 3 axles 60 Ton Semi Side Dump Trailer
  • 3 axles 60 Ton Semi Side Dump Trailer
  • 3 axles 60 Ton Semi Side Dump Trailer
  • 3 axles 60 Ton Semi Side Dump Trailer

Other notes of 3 axles 60 Ton Semi Side Dump Trailer

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc..

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc.. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc..

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
