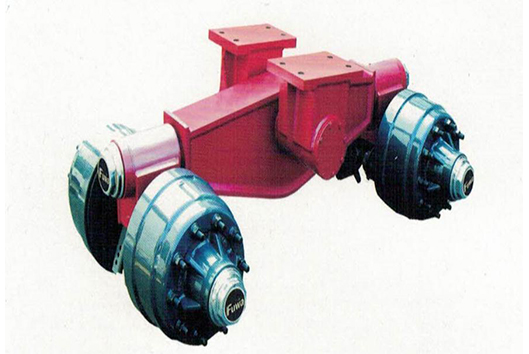

Overview of FW41 and FW43 Argo Bogie Suspension Series

Heavy duty and extra durability designed in comply with National Standard
Special design without leaf spring as the spring element, the force point distributed on the front and rear axles directly to achieve stronger rigidity and strength
Design for 2 axles installation with total 40T capacity
Connection to the trailer body is optional for bolt-in and welded type
Usually applicable for square beam trailer axle

Advantage of FW41 and FW43 Argo Bogie Suspension Series

Mature technology and reasonable design ensure good quality and competitive cost.
Advanced workmanship and skilled technician team ensure strength.
Light weight, reduced impact on the body and improved ground adhesion of the wheel.
The shock absorption effect of the axle is very poor, and the longitudinal unevenness of the road surface is completely adapted by the swing of the balance beam, thereby maintaining the relative balance of the front and rear axles.
Fast response and flexible service from our professional team.
Distinct location to get full range support on delivery and manufacturing.
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

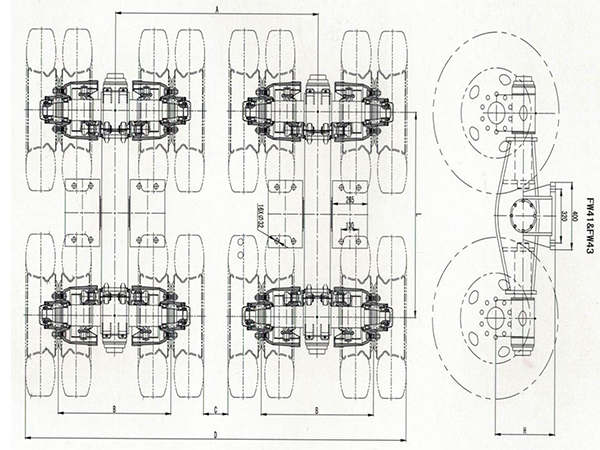

FW41&FW43 Argo Bogie Suspension Series
Model	L (mm)	H (mm)	A (mm)	B (mm)	C (mm)	D (mm)	Axle Type	Axle Load (KG)/(80km/h)	Rim Specification	Tire Specification
FW41-1220/457	1220	457	1550	860	186	≥2914	FN2091DP42AA-001	40,000	6.50-15	8.25R15
FW41-1220/360	1220	360	1550	860	186	≥;2914	FN2091DP42AA-001	40,000	6.50-15	8.25R15
FW41-1220/335	1220	335	1550	860	186	≥2914	FN2091DP42AA-001	40,000	6.50-15	8.25R15
FW43-1550/457	1550	457	1902	965	286	≥3538	FB2161XE01AA-001	80,000	8.00V-20	12.00R24
FW43-1550/360	1550	360	1902	965	286	≥3538	FB2161XE01AA-001	80,000	8.00V-20	12.00R24
FW43-1550/335	1550	335	1902	965	286	≥3538	FB2161XE01AA-001	80,000	8.00V-20	12.00R24

FW41 and FW43 Argo Bogie Suspension Series is applicable on Ultraton heavy duty low Bed Semi Trailer and low speed cargo carring.

Pre-sales Services

Payment: 50% TT advance before production, 50%TT before shipment is preferred

Delivery:

Shipping: Sea/ Railway/ Road transportation subject to your location

Packing: CBU or SKD in seaworthy Export Standard
