FUWA Inboard Drum Series Axle is one of the most conventional American style design which is commonly used worldwide.

  • Overview
  • Advantage
  • Application
  • Other notes

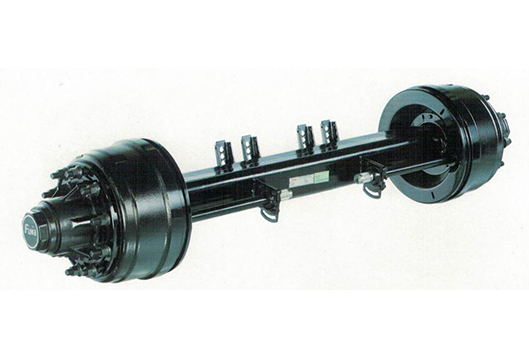

Overview of FUWA inboard drum series axle

  • Integrated one-piece design axle beam with special heat treatment made by low carbon alloy steel 20Mn2.

  • Spider camshaft and anchor pin bores are machined with reference to the spindle after the welding operation.

  • Reasonable design of spindle processed by heat hardening.

  • High performance non-asbestos brake linings of good quality and service life.

  • Improved seals at camshafts for better and safer grease lubricant.

  • Axle beam is available with round 127mm diameter and square 150mm type.

  • Track length and camshaft length could be customized.

  • Loading capacity is available with 11.5T to 20T.

  • Track length and camshaft length could be customized.

  • Brake drum type is available with inboard type.

  • Optional for automatic slack adjuster and ABS system.


  • FUWA inboard drum series axle

Advantage of FUWA inboard drum series axle

  1. Strictly selected raw material and parts ensure more stability and greater capacity.

  2. Special processed spindle with induction hardened bearing journals provide superior fatigue capability.

  3. Accurate machining process increases stability and braking performance.

  4. Strictly selected sealing parts protect braking safety.

  5. Complete quality control procedure including metallographical examination, pressure reversal testing, magnetic flaw detecting, etc can ensure good quality.

  6. Distinct location to get full range support on delivery and manufacturing.

  7. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

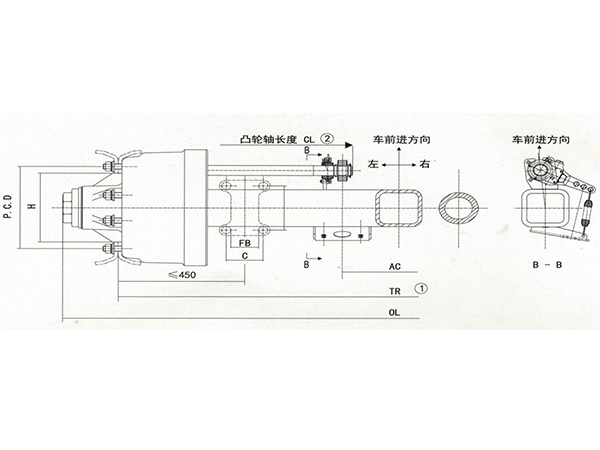

Axle Type

105 (km/h)

Max.Capacity(KG)

'S'  Cam Brake

Series

ø *

Width

(mm)

Track TR (mm)

Spline No.

Axle Beam (mm)

Center Distance Of Chamber

Wheel Fixing

Total Length (mm)

Recommended Wheel

New Model

Old Model

CL (mm)

AC (mm)

Studs (mm)

P.C.D. (mm)

Ø H (mm)

FP2023XE01AA

F2023

11,500

S 420*180

1820

1.625'-37

○127

543

370

10*M22*1.5 ISO

335

281

~2183

≥7.50V-20

FP2024XE01AA

F2024

11,500

S 420*180

1820

1.625'-37

○127

543

370

10*M20*1.5 JAP

285.75

221

~2183

&≥7.50V-20

FP2026XE01AA

F2026

11,500

S 420*180

1820

1.625'-37

○127

543

370

10*M22*1.5 ISO

285.75

221

~2183

≥7.50V-20

FP2023XE02AA

F2023/BII

11,500

S 420*220

1820

1.625'-37

○127

543

326

10*M22*1.5 ISO

335

281

~2183

≥7.50V-20


FP2423XE01AA

F2423

13,000

S 420*180

1840

1.625'-37

□150

543

390

10*M22*1.5 ISO

335

281

~2203

≥7.50V-20

FP2424XE01AA

F2424

13,000

S 420*180

1840

1.625'-37

□150

543

390

10*M20*1.5 JAP

285.75

221

~2203

≥7.50V-20

FP2426XE01AA

F2426

13,000

S 420*180

1840

1.625'-37

□150

543

390

10*M22*1.5 ISO

285.75

221

~2203

≥7.50V-20

FP2423XE02AA

F2426/BII

13,000

S 420*220

1840

1.625'-37

□150

543

346

10*M22*1.5 ISO

335

281

~2203

≥7.50V-20


FB2062XE01AA

F2023AD

15,000

S 420*180

1850

1.625'-37

○127

543

396

10*M22*1.5 ISO

335

281

~2200

≥8.00V-20

FB2462XE01AA

F2423AD

15,000

S 420*180

1850

1.625'-37

□150

543

396

10*M22*1.5 ISO

335

281

~2200

≥8.00V-20


FB2062XE02AA

F2062BII

16,000

S 420*220

1850

1.625'-37

○127

543

354

10*M22*1.5 ISO

335

281

~2200

≥8.00V-20

FB2462XE02AA

F2462BII

16,000

S 420*220

1850

1.625'-37

□150

543

354

10*M22*1.5 ISO

335

281

~2200

≥8.00V-20


FB2182XE02AA

F2082BII

20,000

S 420*220

1850

1.625'-37

□150

543

354

10*M24*1.5 ISO

335

281

~2252

≥8.50V-20

FB2482XE02AA

F2482BII

20,000

S 420*220

1850

1.625'-37

□150

543

354

10*M24*1.5 ISO

335

281

~2252

≥8.50V-20

Note: Axle Head: FP Inner: HM518445/10   Outer: HM518445/10

    Axle Head: FN Inner: HM218248/10   Outer: HM212049/10

    Axle Head: FB Inner: HM220149/10   Outer: HM518445/10

    Axle Head: FD Inner: 32222          Outer: HM518445/10
