FS9&FS12 Type Wearable and Replaceable Suspension Series is a Europe design model of normal mechanical suspension that helps to guide direction and to reduce the impact load and vibration by 11 or 13 pieces of steel leaf springs.

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of FS9 and FS12 Type Wearable and Replaceable Suspension Series

  • Reliable Europe design for wearable quality

  • Material of superior quality option for SUP9 or 60Si2Mn for leaf spring

  • Equipped with 13x100x10, or 11x100x12 leaf spring

  • Design for 2 or 3 axles installation with 9ton or 12ton each

  • Applicable for both round beam trailer axle and square beam trailer axle

  • Installation is applicable for overslung.


Advantage of FS9 and FS12 Type Wearable and Replaceable Suspension Series

  1. Mature technology and reasonable design ensure good quality and competitive cost

  2. FS9&FS12 Type Wearable and Replaceable Suspension Series uses steel leaf spring as the spring element, to achieve stronger rigidity and strength

  3. The grinding block is Q345/Q235 (or 20# cast steel) welded type, and its angle is consistent with the direction in which the leaf spring is forced to expand.

  4. Simple structure makes easy maintenance

  5. Heavy duty and durable design can meet higher standard

  6. Fast response and flexible service from our professional team

  7. Distinct location to get full range support on delivery and manufacturing

  8. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

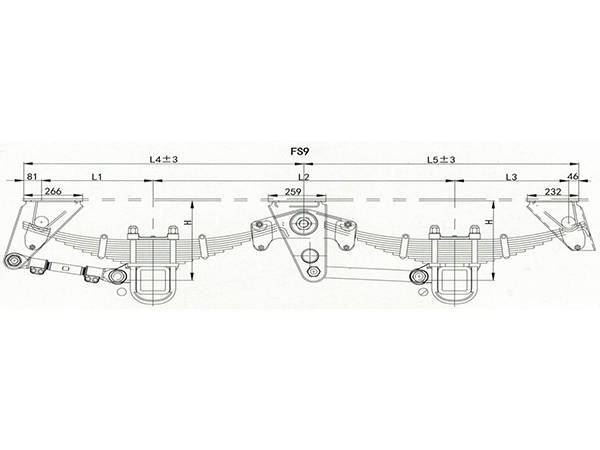

FS9.2AQ120 Tandem Suspension With Thirteen Leaf Springs.          Dimension:13*100*10

Model

H (mm)

L1 (mm)

L2 (mm)

L3 (mm)

L4 (mm)

L5 (mm)

Axle Load (KG)

FS9.2/1360/424/AQ120/13

424

504

1360

514

1265

1240

9,000*2

FS12.2AQ6 Tandem Suspension With Eleven Leaf Springs.          Dimension:11*100*12

Model

H (mm)

L1 (mm)

L2 (mm)

L3 (mm)

L4 (mm)

L5 (mm)

Axle Load (KG)

FS12.2/1360/436/AQ6/11

436

504

1360

514

1265

124

12,000*2

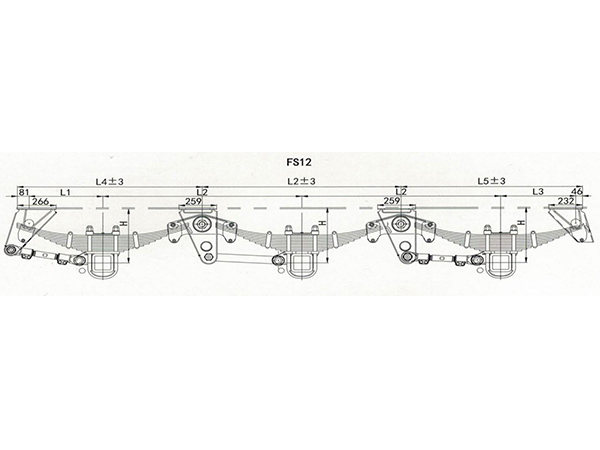

FS9.3AQ120 Tri Suspension With Thirteen Leaf Springs.          Dimension:13*100*10

Model

H (mm)

L1 (mm)

L2 (mm)

L3 (mm)

L4 (mm)

L5 (mm)

Axle Load (KG)

FS9.3/1360/424/AQ120/13

424

504

1360

514

1265

1240

9,000*3

FS12.2AQ6 Tri Suspension With Eleven Leaf Springs.          Dimension:11*100*12

Model

H (mm)

L1 (mm)

L2 (mm)

L3 (mm)

L4 (mm)

L5 (mm)

Axle Load (KG)

FS12.3/1360/436/AQ6/11

436

504

1360

514

1265

1240

12,000*3

Note :(1) Dimension 'A': Unladen, Rated Laden'A*'=A-30

(2) Tightening Torque

Torque Arm Pin Nuts:650-750N.M.

Torque Arm Pin Bolts:90-100N.M.

Equaliser Shaft Nuts:1000-1100N.M.

'U' Bolts Nuts:600-650N.M.

Drop Out Bolts:120-140N.M.

Wearing Ring M20 Torque Setting:300-350N.M.


Application of FS9 and FS12 Type Wearable and Replaceable Suspension Series

FS9&FS12 Type Wearable and Replaceable Suspension Series is applicable on any Ultraton Semi Trailer in need of Europe standard.
