3 Axles 60 Ton Side Wall Semi Trailer

Semi Trailer

3 Axles 60 Ton Side Wall Semi Trailer

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

For even larger tonnage requirement, Ultraton's 3 Axles 60T Side Wall Semi Trailer is strongly recommended as your wise choice. It is equipped with 3 pieces of 20T heavy duty semi trailer axles to ensure the loading capacity, Different design on stake and board can be modified according to customer's requirement.

  • Overview
  • Advantage
  • Application
  • Other notes

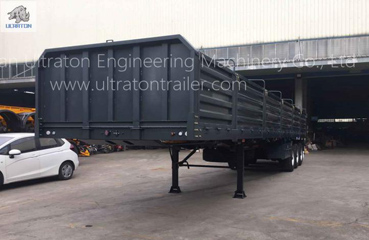

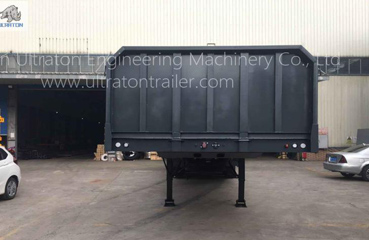

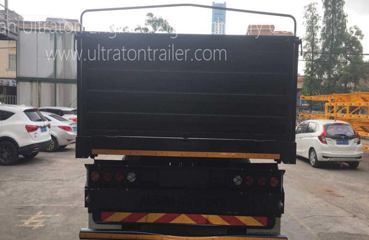

Overview of 3 Axles 60 Ton Side Wall Semi Trailer

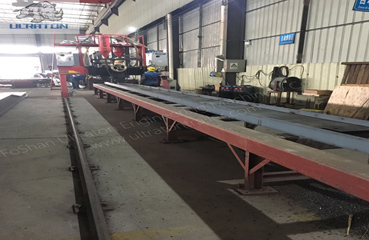

  • Heavy duty and extra durability designed for main I beam

  • Flange and web width & thickness could be customized

  • Steel material we use is high strength low alloy steel Q345

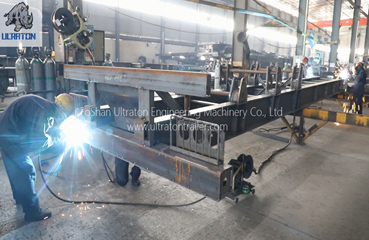

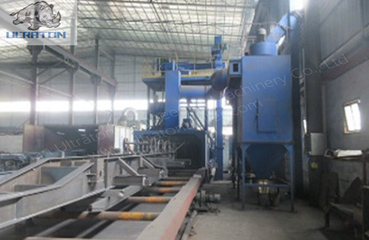

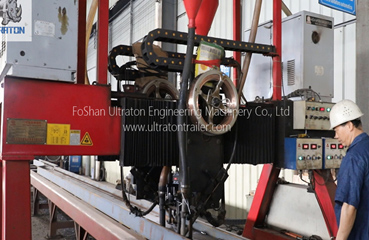

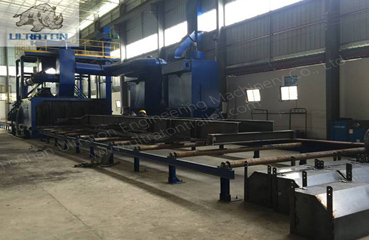

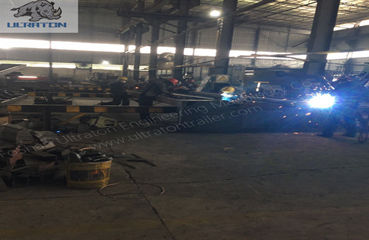

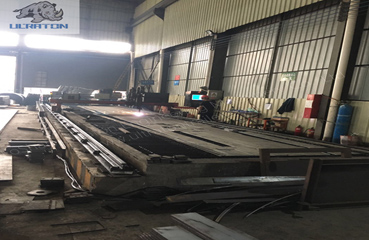

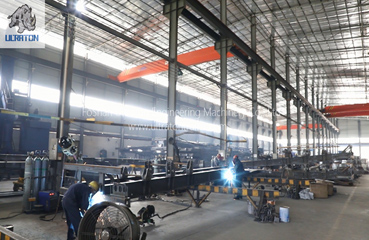

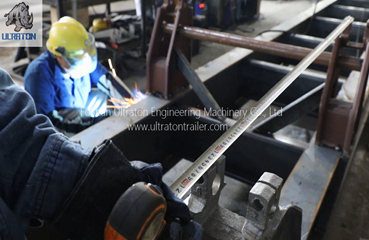

  • Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust

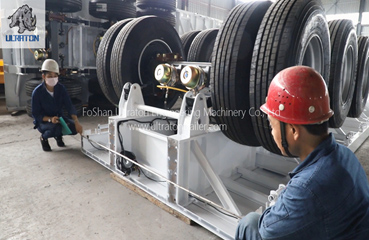

  • Equipped with 3 pieces of 20T German type or American type semi trailer axle; Optional for brands

  • Mechanical suspension or air suspension for choice

  • Removable side wall is optional

  • Other core components are of superior quality and famous brand. Details are outlined as below.


  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer

Advantage of 3 Axles 60 Ton Side Wall Semi Trailer

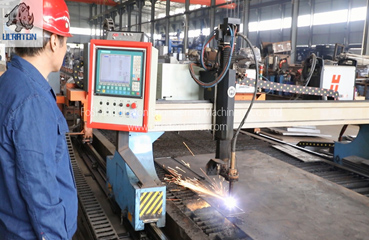

  1. Advanced manufacturing equipment and mature workmanship to ensure outstanding performance and efficient space.

  2. Practical design with high strength to transport specific goods

  3. Packing solution in CKD/ SKD/CBU is optional according to different project.

  4. Fast response and flexible service from our professional team

  5. Distinct location to get full range support on delivery and manufacturing

  6. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service



Technical Parameter3 Axles 60 Ton Side Wall Semi Trailer
Tare Weight(KG)6300KG
Loading Capacity(KG)60000KG
Dimension(mm)13000*2500*2760
Main BeamThe height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm, Web is 8mm.
Kingpin2'' / 3.5'' ,Welded/Bolt-In
Landing GearStandard 28Ton, FUWA Brand
AxleStandard FUWA Brand / ULTRATON Brand
Optional: BPW Brand or HuaJing Brand
SuspensionMechanical Suspension/Air Suspension, Standard FUWA Brand/ULTRATON Brand
Optional: BPW Brand or HuaJing Brand
Leaf SpringStandard FUWA Brand/ULTRATON Brand
90mm*16*7 or 90*16*8
Brake systemDual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay
Emergency Valve, OPTIONS: ABS.
Electrical System24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.
Tire12.00R22.5 Tubeless,12 Units
Rim9.0*22.5,12 Units

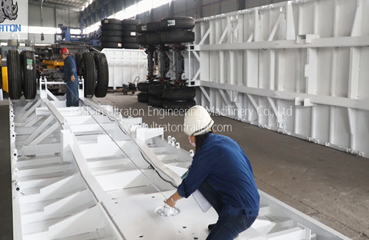

Shot Blasting & PaintingShot Blasting and Sanding Treatment. Two Coat Of Anti Corrosion Primer and
Two Coat Of Finish Painting
Mud GuardFabricated Mud Guard 6 nos
Tool Box1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Spare Tire CarrierEquipped one sets per chassis without spare tire.
Side BoardAccording To Customer's Requirement
Front BaffleAccording To Customer's Requirement
We Can Build The Trailer According To Customer's Design And Requirement.


Application of 3 Axles 60 Ton Side Wall Semi Trailer

Ultraton's 3 axles 60T Side Wall Semi Trailer is especially appropriate for transport bag package grain, feed, vegetable etc..

  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer
  • 3 Axles 60 Ton Side Wall Semi Trailer

Other notes of 3 Axles 60 Ton Side Wall Semi Trailer

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc..

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc..

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
