FW86 Type Heavy Duty Weight suspension Series(Lengthening Axle Spacing)

Semi Trailer

FW86 Type Heavy Duty Weight suspension Series(Lengthening Axle Spacing)

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

applicable model of normal mechanical suspension that helps to guide the direction and to reduce the impact load and vibration by 9 pieces of widening heavy-duty steel leaf springs.

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of FW86 Type Heavy Duty Weight suspension Series(Lengthening Axle Spacing)

  • Heavy duty and extra durability designed in comply with National Standard and ADR

  • Superior quality material SUP9 or 60Si2Mn optional on leaf spring

  • The grinding block is Q345/Q235 (or 20# cast steel) welded type

  • A grease lubrication nozzle is on equilizer wear block

  • Axle spacing could be customized and lengthened

  • Equipped with 9x90x16 leaf spring

  • Design for 2 or 3 axles installation with 16ton each

  • Applicable for square beam trailer axle for heavy duty purpose

  • Installation is applicable for overslung

Advantage of FW86 Type Heavy Duty Weight suspension Series(Lengthening Axle Spacing)

  1. Mature technology and reasonable design ensure good quality and competitive cost

  2. FW86 Type Heavy Duty Weight Suspension Series (Lengthening Axle Spacing) uses steel leaf spring as the spring element, to achieve stronger rigidity and strength

  3. Simple structure makes easy maintenance

  4. Flexible design on lengthening axle spacing meet different need

  5. Reasonable design can effectively reduce the friction of the tire and prolongs the service life of the tire during the process of frequent vehicle running.

  6. Fast response and flexible service from our professional team

  7. Distinct location to get full range support on delivery and manufacturing

  8. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

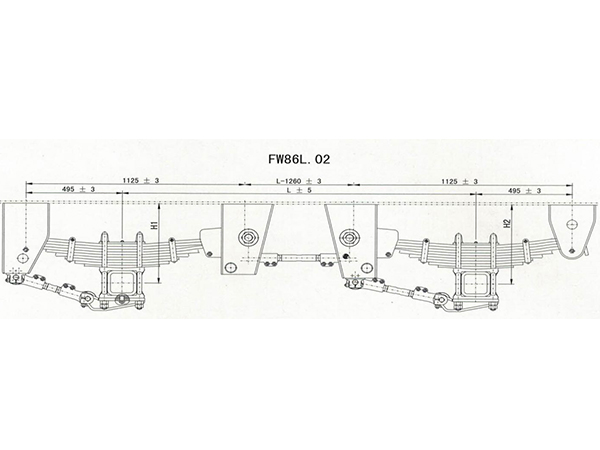

FW86L.02 Tandem Suspension With Nine Leaf Springs.   Dimension:9*90*16

Model

H1(mm)

H2(mm)

Axle Load (KG)

FW86L0201A

473

465

16,000*2

FW86L0201B

454

444

16,000*2

FW86L0202A

513

505

16,000*2

FW86L0202B

494

484

16,000*2

FW86L0203A

543

535

16,000*2

FW86L0203B

524

514

16,000*2

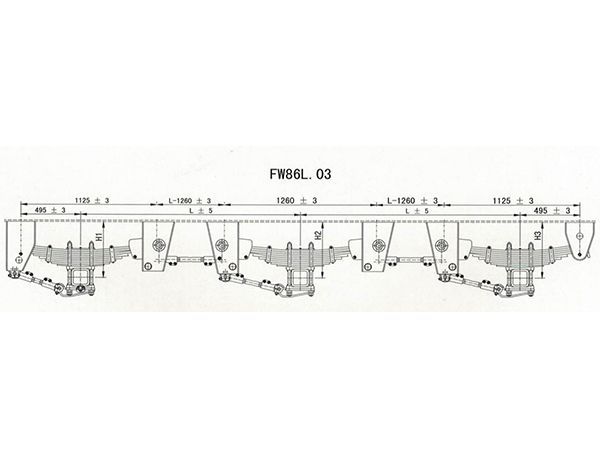

FW86L.03 Tri Suspension With Nine Leaf Springs.   Dimension:9*90*16

Model

H1(mm)

H2(mm)

H3(mm)

Axle Load(KG)

FW86L0301A

489

480

467

16,000*3

FW86L0301B

470

461

448

16,000*3

FW86L0302A

529

520

507

16,000*3

FW86L0302B

510

501

488

16,000*3

FW86L0303A

559

550

537

16,000*3

FW86L0303B

540

531

518

16,000*3

Note: Lengthening Axle Spacing: Axle Spacing≥1820mm


Application of FW86 Type Heavy Duty Weight suspension Series(Lengthening Axle Spacing)

FW86 Type Heavy Duty Weight Suspension Series ( Lengthening Axle Spacing)  is widely applicable on any Ultraton Semi Trailer in special need on axle spacing

Other notes of FW86 Type Heavy Duty Weight suspension Series(Lengthening Axle Spacing)

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc .

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc.

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
