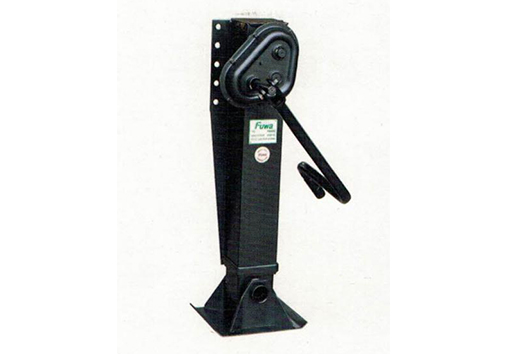

FW28 Landing GearSeries
FW28 Landing Gear Series is a device with capacity 28T per pair used to support the front load of the Semi-Trailer and lift the height of the front of the Semi-Trailer through the hand-driven mechanism so as to facilitate the connection and suspension of the tractor.
- Overview
- Advantage
- Application
- Other notes
Overview of FW28 Landing GearSeries
Heavy duty and extra durability designed
Gearbox with low temperature premium chassis lube rated for service from -30°C to +120°C
Maintenance free feature with grease lubricant packed jack screw
High gear and low gear is optional for different speed
Backing mounting plate is optional for greater load bearing capacity and extended life
Type A, G, S, R, T shoes available for different use
One side operation or two sides operation is optional with crank
Design of crank is optional
Meet Safety Regulations for commercial vehicles
Advantage of FW28 Landing GearSeries
Mature technology and workmanship offers more stability, greater capacity and longer service life
Strictly selected material and parts protect high performance.
Complete quality control procedure can ensure good quality
Various choice of backing mounting plate and shoes can meet different condition need
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
| One Side Operation Landing Gear Assy | |||
| Model | Types Of Shoes | Lift D (mm) | Height A (mm) |
| FW280001A | A | 430 | 814 |
| FW280001G | G | 430 | 770 |
| FW280001R | R | 430 | 797 |
| FW280001S | S | 430 | 822 |
| FW280001T | T | 430 | 794 |
| FW280002A | A | 480 | 864 |
| FW280002G | G | 480 | 820 |
| FW280002R | R | 480 | 847 |
| FW280002S | S | 480 | 872 |
| FW280002T | T | 480 | 844 |
| Both Geared Landing Gear Assy | |||
| FW280011A | A | 430 | 814 |
| FW280011G | G | 430 | 770 |
| FW280011R | R | 430 | 797 |
| FW280011S | S | 430 | 822 |
| FW280011T | T | 430 | 794 |
| FW280022A | A | 480 | 864 |
| FW280022G | G | 480 | 820 |
| FW280022R | R | 480 | 847 |
| FW280022S | S | 480 | 872 |
| FW280022T | T | 480 | 844 |
| Standard Specifications | |||
| Capacity 28,000KG/Pair | |||
| Static Load 80,000KG/Pair | |||
| Weight 98KG | |||
| Crank Force | |||
| Low Gear 0.71mm Per Turn(mm/r) Of Handle | |||
| High Gear 5.40mm Per Turn(mm/r) Of Handle | |||
| One Side Operation Crank Force 28T-35KG | |||
| Two Side Operation Crank Force 28T-17KG | |||
Application of FW28 Landing GearSeries
FW28 Landing Gear Series is applicable on any Ultraton Semi Trailer
