FW86 Type Heavy Duty Underslung suspension Series

Semi Trailer

FW86 Type Heavy Duty Underslung suspension Series

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

FW86 Type Heavy Duty Underslung Suspension Series is a widely applicable model of normal mechanical suspension that helps to guide direction and to reduce the impact load and vibration by 9 pieces of widen heavy-duty steel leaf springs, with underslung installation design

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of FW86 Type Heavy Duty Underslung suspension Series

  • Heavy duty and extra durability designed in comply with National Standard and ADR

  • Superior quality material SUP9 or 60Si2Mn optional on leaf spring

  • Typical structure consists of elastic elements, shock absorbers, and guiding mechanisms  serve as buffering, damping and force transmission

  • Equipped with 9x90x16 leaf spring

  • Design for 2 or 3 axles installation with 16ton each

  • Applicable for square beam trailer axle for heavy duty purpose

  • Standard axle spacing available with 1310mm.

  • Installation is applicable for underslung


Advantage of FW86 Type Heavy Duty Underslung suspension Series

  1. Mature technology and reasonable design ensure good quality and competitive cost

  2. FW86 Type Heavy Duty Underslung Suspension Series uses steel leaf spring as the spring element, to achieve stronger rigidity and strength

  3. Reduce or eliminate the impact and vibration transmitted to the frame by the uneven road through the axle to improve the ride comfort of the semi-trailer.

  4. The verticality of the axle and the traction pin can be ensured, and the eccentric wear and abortion of the trailer tire can be effectively eliminated.

  5. Reasonable design can effectively reduce the friction of the tire and prolongs the service life of the tire during the process of frequent vehicle running.

  6. Simple structure makes easy maintenance

  7. Underslung installation can help lower center of gravity for stronger loading capacity

  8. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

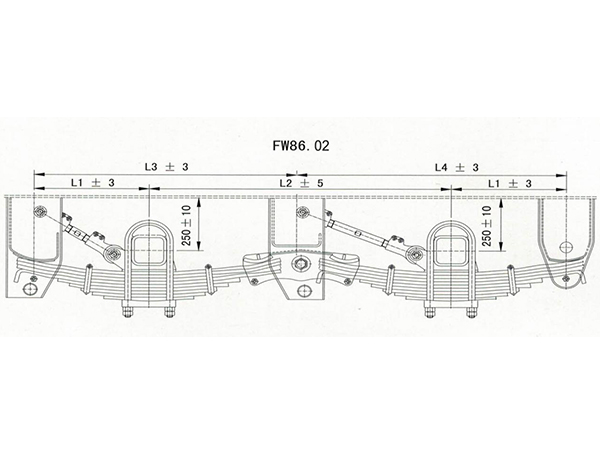

FW86.21/250/BQ6/9 Tandem Underslung Suspension With Nine Leaf Springs(Axle Spacing: 1310).   Dimension:9*90*16

Model

L1(mm)

L2(mm)

L3(mm)

L4(mm)

Axle Load (KG)

FW86.2/1310/250/BQ6/9

495

1310

1135

1165

16,000*2

FW86.2/1360/250/BQ6/9

495

1360

1160

1190

16,000*2

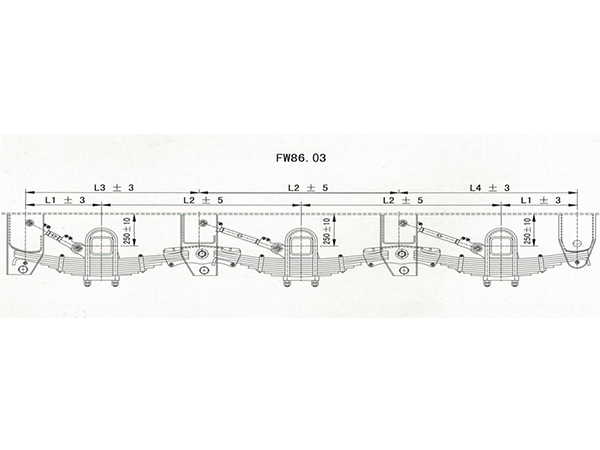

FW86.31/250/BQ6/9 Tri Underslung Suspension With Nine Leaf Springs (Axle Spacing: 1310).   Dimension:9*90*16

Model

L1(mm)

L2(mm)

L3(mm)

L4(mm)

Axle load(KG)

FW86.3/1310/250/BQ6/9

495

1310

1135

1165

16,000*3

FW86.3/1360/250/BQ6/9

495

1360

1160

1190

16,000*3


Application of FW86 Type Heavy Duty Underslung suspension Series

FW86 Type Heavy Duty Underslung Suspension Series is widely applicable on any Ultraton Semi Trailer in lower center of gravity

Other notes of FW86 Type Heavy Duty Underslung suspension Series

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc.

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc.

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
