FUWA Disc-Brake Series Axle is advanced model cooperated with Wabco disc brake technology which can satisfy your different need on the brake system.

  • Overview
  • Advantage
  • Application
  • Other notes

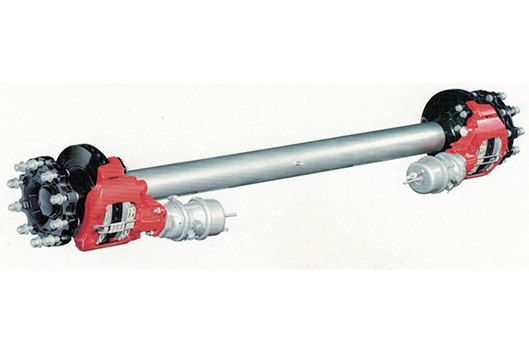

Overview of FUWA disc brake series axle

  • Integrated one-piece design axle beam with special heat treatment made by low carbon alloy steel 20Mn2.

  • Axles feature a new brake system that provides 30% more braking capability than conventional axles and with a lightweight design.

  • Axle beam is optional for round 127mm diameter, round 146mm diameter and square 150mm.

  • Track length could be customized.

  • Optional for SKF maintenance free bearing.

  • Advanced workmanship and superior quality cooperated with world famous brand.


  • FUWA disc brake series axle

Advantage of FUWA disc brake series axle

  1. Strictly selected raw material and parts ensure more stability and greater capacity

  2. Special processed spindle with induction hardened bearing journals provide superior fatigue capability

  3. The size of the brake friction pad is not long, the working surface area is only 12% to 6% of the brake disk area, so the heat dissipation is good.

  4. The brake pad has a high unit pressure on the disc, easy to squeeze out the water, and easy to be smashed after being wet by the centrifugal force, and the wiping action of the pad on the disc.

  5. The braking torque does not affect forward and reverse driving of vehicle.

  6. Easier replacement and maintenance for disc type friction pad

  7. The gap between the brake disc and the friction pad is small (0.05~0.15mm), which shortens the operation time of the cylinder piston and increases the force transmission ratio of the brake drive mechanism

  8. The thermal expansion of the brake disc does not cause the brake pedal stroke loss which also simplifies the design of the automatic gap adjustment device.

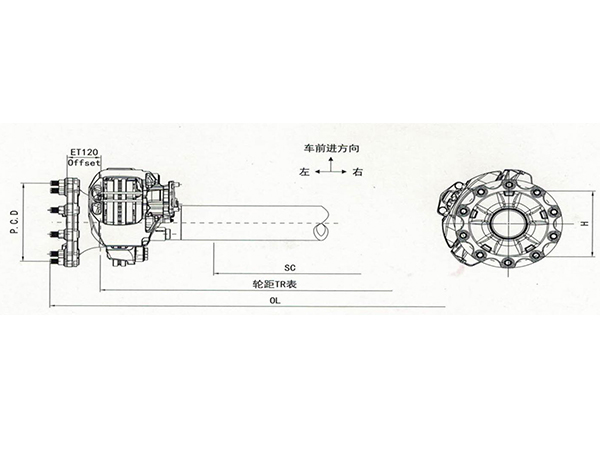

Disc-Brake Series Axle Specifications

Axle Type

Axle Beam Size (mm)

105 (km/h) Max. Capacity (kg/lbs)

Disc Brake

Caliper

Spring Center

Track

Tyre

Wheel Fixing

Total Length LP(mm)

Recommended Wheel

Note

Type

Size (mm)

WABCO

SC mm

TR mm

Studs mm

P.C.D.  mm

Ø H mm

ET

FU2009DB001AA

○127

9,000/20,000

Disc

Ø 375*45

PAN 19-1

980

1835

Twin

10*M22*1.5 ISO

285.75

221

ET0

~2046

7.5V-20

(1)

FP20DB01AA-000

○127

11,500/25,000

Disc

Ø 430*45

PAN 22-1

980

1816

Twin

10*M22*1.5 ISO

285.75

221

ET0

~2046

8.0V-20

(2)

FP20DB01AA-200

○127

11,500/25,000

Disc

Ø430*45

PAN 22-1

980

1850

Twin

10*M22*1.5 ISO

285.75

221

ET0

~2046

8.0V-20

(3)

FP20DB01AA-300

○127

11,500/25,000

Disc

Ø 430*45

PAN 22-1

980

1850

Twin

10*M22*1.5 ISO

335

281

ET0

~2046

8.0V-20

(3)

FP24DB01AA-301

□150

12,000/26,000

Disc

Ø430*45

PAN 22-1

980

1840

Twin

10*M22*1.5 ISO

335

281

ET0

~2201

8.0V-20

(3)

Note: (1) Maintenance-Free Bearing: SKF BTH-0055

(2) Bearing:HM18445/10, Caliper: WABCO 640 225 050 0/Bendix

(3) Bearing:HM18445/10, Caliper: WABCO 640 225 032 0/ Knorr


Euro Disc-Brake Series Axle Specifications

Axle Type

Axle Beam Size (mm)

105 (km/h) Max. Capacity (kg/lbs)

Disc Brake

Caliper

Spring Center

Track

Tyre

Wheel Fixing

Total Length LP(mm)

Recommended Wheel

Type

Size (mm)

WABCO

SC mm

TR mm

Studs mm

P.C.D.  mm

Ø H mm

ET

FM2609DB001AA

○146

9,000/20,000

Disc

Ø430*45

PAN 22-1

1200/1300

2040

Single

10*M22*1.5 ISO

335

280.8

ET120

~2400

22.5*11.75

FM2609DB002AA

○146

9,000/20,000

Disc

Ø375*45

PAN 19-1

1200/1300

2040

Single

10*M22*1.5 ISO

335

280.8

ET120

~2400

22.5*11.75

FM2609DB021AA

○146

9,000/20,000

Disc

Ø430*45

PAN 22-1

1200/1300

2040

Twin

10*M22*1.5 ISO

335

280.8

ET160

~2285

22.5*7.5

FM2609DB022AA

○146

9,000/20,000

Disc

Ø375*45

PAN 19-1

1200/1300

2040

Twin

10*M22*1.5 ISO

335

280.8

ET160

~2285

22.5*7.5

FM2609DB031AA

○146

9,000/20,000

Disc

Ø 430*45

PAN 22-1

1200/1300

2040

Single

10*M22*1.5 ISO

335

280.8

ET0

~2400

22.5*11.75

FM2609DB032AA

○146

9,000/20,000

Disc

Ø375*45

PAN 19-1

1200/1300

2040

Single

10*M22*1.5 ISO

335

280.8

ET0

~2400

22.5*11.75


Application of FUWA disc brake series axle

FUWA Disc-Brake Series Axle is recommended to use on Tank Semi Trailer,  High-pressure gas long tubular Semi Trailer, Fully Enclosed Semi Trailer, Vehicle Transport Semi Trailer, tobacco, medicine, electronic transport Semi-Trailer etc.
