20-40 Ton Low Bed Semi Trailer

Semi Trailer

20-40 Ton Low Bed Semi Trailer

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

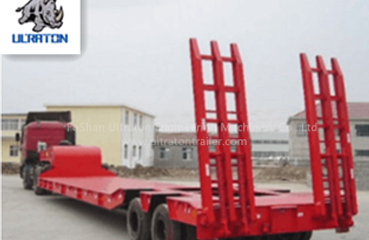

Ultraton's 25-40T Low Bed Semi Trailer with a concave beam-type frame is a durable and smart solution for different kinds of heavy-duty load.

  • Overview
  • Advantage
  • Application
  • Other notes

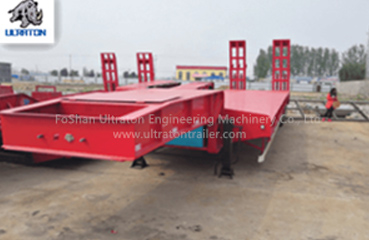

Overview of 20-40 Ton Low Bed Semi Trailer

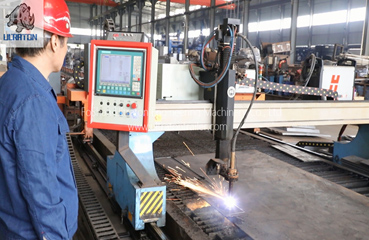

  • Scientific design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements

  • Steel material we use is high strength low alloy steel Q345.

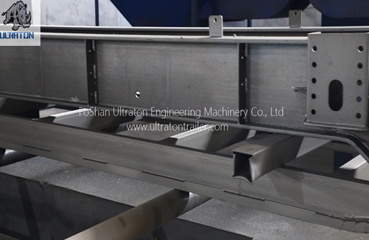

  • Heavy duty and extra durability designed for concave beam.

  • Flange and web width & thickness could be customized

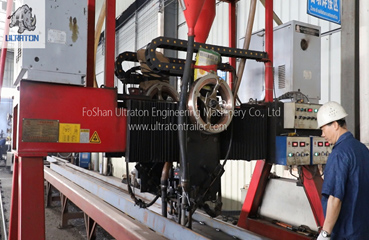

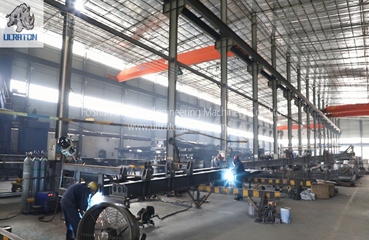

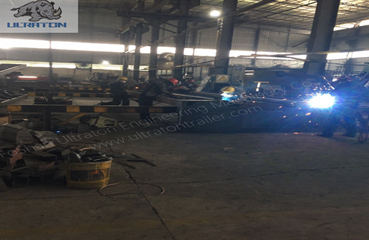

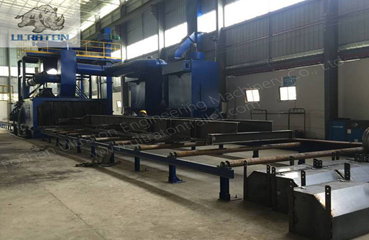

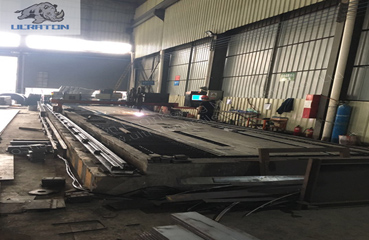

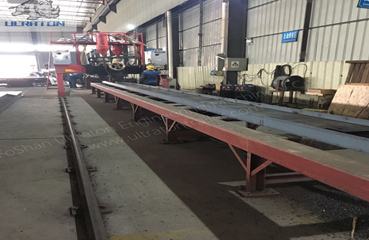

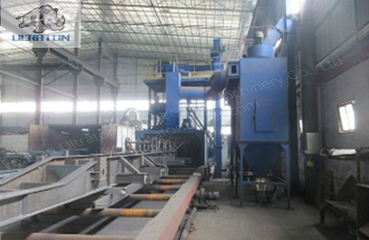

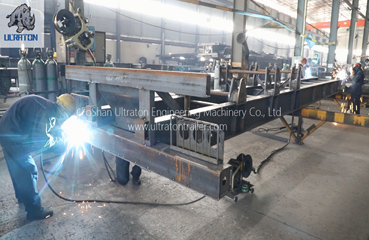

  • Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust.

  • Superior quality and famous brand we use on specific different trailer parts. Details are outlined as below.


  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer

Advantage of 20-40 Ton Low Bed Semi Trailer

  1. High tensile structure steel, robust and durable construction with high bending moment, high concentrated loading bearing capacity.

  2. Practical design to ensure reasonable load sharing to transport specific goods

  3. Shipped both by container, or RORO, bulk shipment.

  4. Advanced manufacturing equipment and mature workmanship to ensure outstanding performance

  5. Complete and flexible service from our professional team

  6. Distinct location to get full range support on delivery and manufacturing

  7. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service




Technical Parameter25 -40 Ton Low Bed Semi Trailer
Tare Weight(KG)8500KG
Loading Capacity(KG)25000KG~40000KG
Dimension(mm)11000*3000*3000
Main BeamThe height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm, Web is 8mm.
Kingpin2'' / 3.5'' ,Welded/Bolt-In
Landing GearStandard 28Ton, FUWA Brand
AxleStandard FUWA Brand / ULTRATON Brand
Optional: BPW Brand or HuaJing Brand
SuspensionMechanical Suspension/Air Suspension, Standard FUWA Brand/ULTRATON Brand
Optional: BPW Brand or HuaJing Brand
Leaf SpringStandard FUWA Brand/ULTRATON Brand
90mm*16*7 or 90*16*8

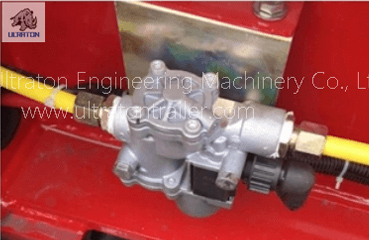

Brake systemDual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay
Emergency Valve, OPTIONS: ABS.
Electrical System24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.
Tire12.00R22.5 Tubeless,8 Units
Rim9.0*22.5,8 Units
Shot Blasting & PaintingShot Blasting and Sanding Treatment. Two Coat Of Anti Corrosion Primer and
Two Coat Of Finish Painting
Mud GuardFabricated Mud Guard 4 nos
Tool Box1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Spare Tire CarrierEquipped one sets per chassis without spare tire.
We Can Build The Trailer According To Customer's Design And Requirement.


Application of 20-40 Ton Low Bed Semi Trailer

Ultraton's 20 - 40T Low Bed Semi Trailer could be used to handle heavy duty load, or normal dry cargo in different need for logistic companies and drivers

  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer
  • 20-40 Ton Low Bed Semi Trailer

Other notes of 20-40 Ton Low Bed Semi Trailer

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc..

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc..

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
