FW68 Type Lightweight suspension Series（Lengthening Axle Spacing）
FH68 type Lightweight Suspension Series (Lengthening Axle Spacing) is a flexible design model of normal mechanical suspension that helps to guide the direction and to reduce the impact load and vibration by 8 pieces of steel leaf springs.
- Overview
- Advantage
- Application
- Other notes
Overview of FW68 Type Lightweight suspension Series（Lengthening Axle Spacing）
Lightweight and extra durability designed hangers and bushing
Material of superior quality option for SUP9 or 60Si2Mn for leaf spring
The grinding block is Q345/Q235 (or 20# cast steel) welded type
A grease lubrication nozzle is on equilizer wear block
Axle spacing could be customized and lengthened
Equipped with 8x75x13 leaf spring
Design for 2 axles installation with 11Ton each
Applicable for both round beam trailer axle and square beam trailer axle
Installation is applicable for overslung.
Advantage of FW68 Type Lightweight suspension Series（Lengthening Axle Spacing）
Mature technology and reasonable design ensure good quality and competitive cost
FH68 type Lightweight Suspension Series (Lengthening Axle Spacing) uses steel leaf spring as the spring element, to achieve stronger rigidity and strength
Simple structure makes easy maintenance
Flexible design on lengthening axle spacing meet different need
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

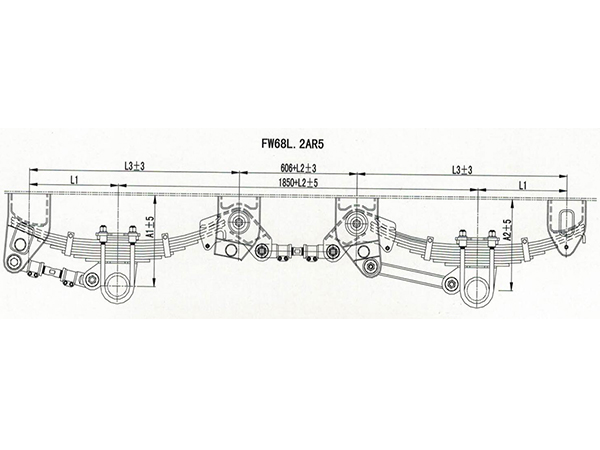

FW68L.2AR5 Tandem Suspension With Eight Leaf Springs Dimension:8*75*13 | ||||||
Model | A1 (mm) | A2 (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Axle Load (KG) |
FW68L.2HHAR5 | 440 | 440 | 458 | according to customer's requirement | 1080 | 11,000*2 |
FW68L.2MMAR5 | 415 | 415 | 458 | according to customer's requirement | 1080 | 11,000*2 |
FW68L.2LLAR5 | 390 | 390 | 458 | according to customer's requirement | 1080 | 11,000*2 |
FW68L.2HMAR5 | 440 | 415 | 458 | according to customer's requirement | 1080 | 11,000*2 |
FW68L.2MLAR5 | 415 | 390 | 458 | according to customer's requirement | 1080 | 11,000*2 |
Note: (1) Dimension 'A': Unladen, Rated Laden'A*'=A-30 (2) Suitable For Round / Square Axles (3) Tightening Torque Torque Arm Pin Nuts:150-200N.M. Torque Arm Pin Bolts:90-100N.M. Equaliser Shaft Nuts:290-350N.M. 'U' Bolts Nuts:500-540N.M. Drop Out Bolts:75-85N.M. | ||||||
Application of FW68 Type Lightweight suspension Series（Lengthening Axle Spacing）
FH68 type Lightweight Suspension Series (Lengthening Axle Spacing) is applicable on any Ultraton Semi Trailer in special need on axle spacing.
