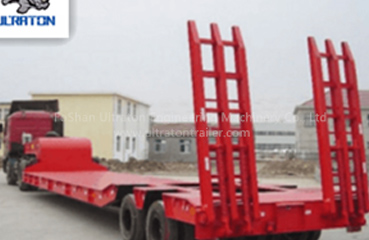

40-60 Ton Low Bed Semi Trailer
Ultraton's 40-60 Low Bed Semi Trailer with a concave beam-type frame is a durable and smart solution for different kinds of heavy-duty load. We Ultraton hold the principle of being custermer-oriented, offer low bed semi trailer for sale, including 60 ton low bed trailer.
- Overview
- Advantage
- Application
- Other notes

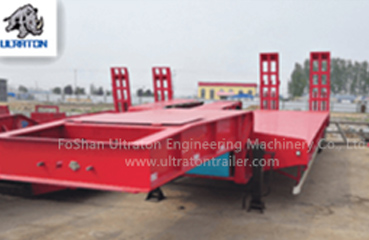

Overview of 40-60 Ton Low Bed Semi Trailer

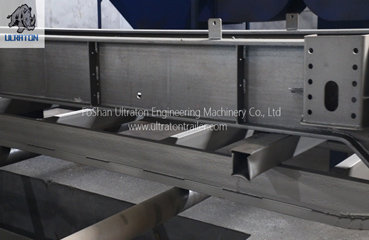

16 manganese high strength steel is used in heavy duty and extra durability designed for main I beam.
Flange and web width & thickness could be customized

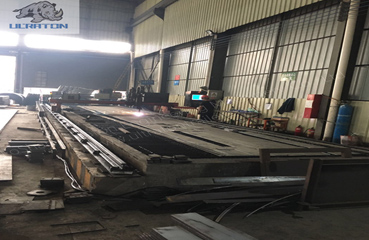

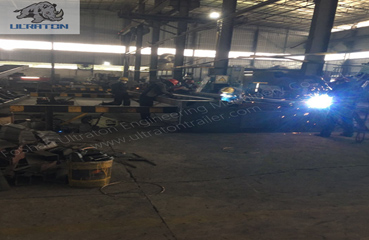

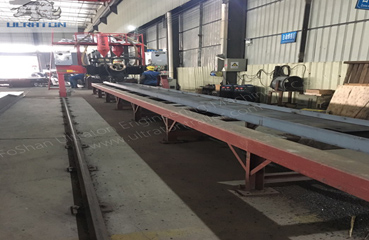

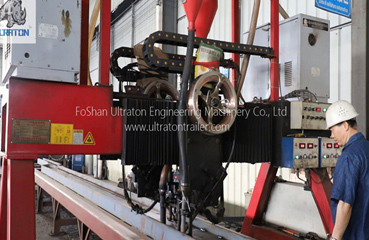

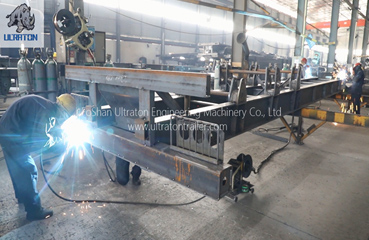

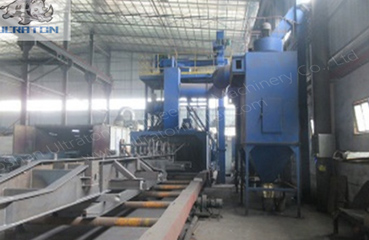

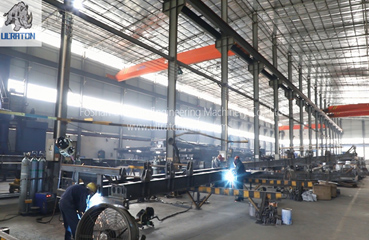

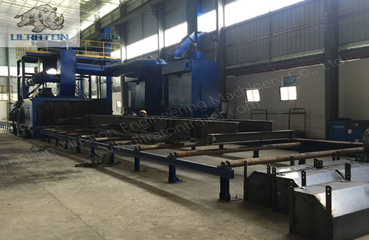

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress
Floor in 50mm thick hard wood or checker plate steel
Axles could be optional for German type or American type from 13T to 20T
Suspension is optional for mechanical suspension, air suspension or bogie suspension
Advantage of 40-60 Ton Low Bed Semi Trailer
High tensile structure steel, robust and durable construction with high bending moment, high concentrated loading bearing capacity.
Scientific design with high strength to transport heavy duty goods
Efficient packing solution is available
Trailer parts as core components are of superior quality and complete service
Complete and flexible service from our professional team
Mature technology and unique resource ensure competitive cost
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
| Technical Parameter | 40-60 Ton Low Bed Semi Trailer |
| Tare Weight(KG) | 8500KG |
| Loading Capacity(KG) | 40000KG~60000KG |

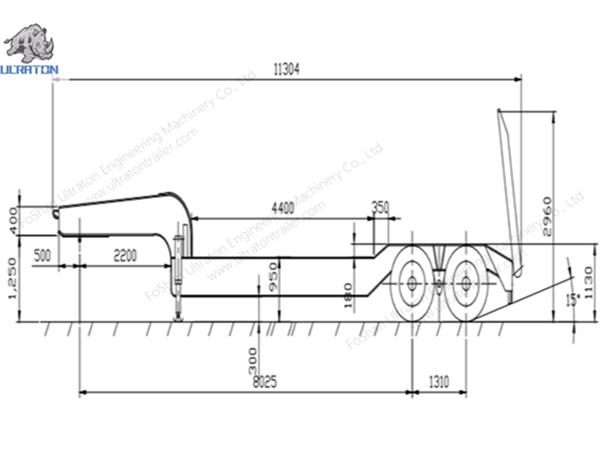

| Dimension(mm) | 11000*3000*3000 |
| Main Beam | The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm, Web is 8mm. |
| Kingpin | 2'' / 3.5'' ,Welded/Bolt-In |
| Landing Gear | Standard 28Ton, FUWA Brand |
| Axle | Standard FUWA Brand / ULTRATON Brand Optional: BPW Brand or HuaJing Brand |
| Suspension | Mechanical Suspension/Air Suspension, Standard FUWA Brand/ULTRATON Brand Optional: BPW Brand or HuaJing Brand |
| Leaf Spring | Standard FUWA Brand/ULTRATON Brand 90mm*16*7 or 90*16*8 |
| Brake system | Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay Emergency Valve, OPTIONS: ABS. |
| Electrical System | 24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor. |
| Tire | 12.00R22.5 Tubeless,8 Units |
| Rim | 9.0*22.5,8 Units |
| Shot Blasting & Painting | Shot Blasting and Sanding Treatment. Two Coat Of Anti Corrosion Primer and Two Coat Of Finish Painting |
| Mud Guard | Fabricated Mud Guard 4 nos |
| Tool Box | 1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs) |
| Spare Tire Carrier | Equipped one sets per chassis without spare tire. |
| We Can Build The Trailer According To Customer's Design And Requirement. | |
Application of 40-60 Ton Low Bed Semi Trailer
Ultraton's 40-60T Low Bed Semi Trailer could be used to handle heavy duty load, or normal dry cargo in different need for logistic companies and drivers
