FUWA Spoke Type Series Axle is a special design axle model that with cast spokes integrated with hub together for heavy-duty needs.

  • Overview
  • Advantage
  • Application
  • Other notes

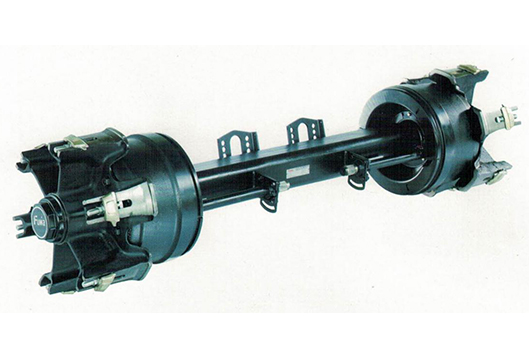

Overview of FUWA spoke type series axle

  • Integrated one-piece design axle beam with special heat treatment made by low carbon alloy steel 20Mn2.

  • More reasonable design of spindle with parallel and taper shape.

  • Spider camshaft and anchor pin bores are machined with reference to the spindle after the welding operation.

  • High performance non-asbestos brake linings of good quality and service life.

  • Improved seals at camshafts for better and safer grease lubricant.

  • Special design of spoke type integrated hub available with 5 spokes or 6 spokes.

  • Axle beam is available with round 127 diameter and square 150mm type.

  • Track length and camshaft length could be customized.

  • Optional for automatic slack adjuster.


  • FUWA spoke type series axle

Advantage of FUWA spoke type series axle

  1. Mature technology and workmanship offers more stability, greater capacity and longer service life.

  2. Special processed spindle journals provide superior fatigue capability.

  3. Accurate machining process increases stability and braking performance.

  4. Strictly selected sealing parts protect braking safety.

  5. Unique design on hub integrated with spoke can meet complicated road condition.

  6. Good heat dissipation and high temperature resistance.

  7. Good performance on braking good for service life of tire.

  8. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

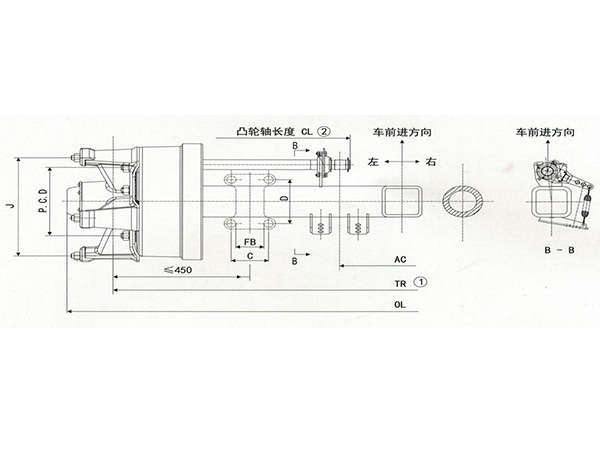

Axle Type

105 (km/h)

Max.Capacity(KG)

'S' Cam Brake

Series

ø *

Width

(mm)

Track TR (mm)

Spline No.

Axle Beam (mm)

Center Distance Of Chamber

Wheel Fixing

Total Length (mm)

Recommended Wheel

New Model

Old Model

CL (mm)

AC (mm)

TR Max. Track Length

Studs (mm)

P.C.D. (mm)

Ø J (mm)

FN2095DA04AA


10,500

S 311*190

1816

10/28

○127

524

382


10*6-3/4''


317.5

~2126

15*3'' SPOKE

FN2095DP04AA

F2095/GP

10,500

S 311*190

1816

10

○127

524

382


10*6-3/4''


317.5

~2126

15*3'' SPOKE


FN2051GP01AA

F2051GP

11,500

S 420*180

1850

10/28

○127

524

438

≤2750

5*3/4''

11''

444.5

~2145

20''*5 SPOKE

FN2051AM01AA

F2051AM

11,500

S 420*180

1850

10/28

○127

524

438

≤2750

5*3/4''

11''

444.5

~2159

20''*5 SPOKE

FN2052GP01AA

F2052GP

11,500

S 420*180

1850

10/28

○127

524

438

≤2730

5*3/4''

11.25''

444.5

~2213

20''*5 SPOKE

FN2054GP01AA

F2054GP

11,500

S 420*180

1850

10/28

○127

524

438

≤2730

6*5/8''

11.25''

444.5

~2213

20''*6 SPOKE

FP2754XE01AA

F2754

11,500

S 420*180

1850

37

□127

543

400

≤2730

6*5/8''

11.25''

444.5

~2213

20''*6 SPOKE

FP2754GP01AA

F2754GP

11,500

S 420*180

1850

10/28

□127

524

438

≤2730

6*5/8''

11.25''

444.5

~2213

20''*6 SPOKE


FB2474XE02AA

F2474

16,000

S 420*220

1850

37

□150

543

354

≤2720

6*M20*1.5

335

514.5

~2220

24''*6 SPOKE

FD2484XE02AA

F2484

20,000

S 420*220

1850

37

□150

543

354

≤2690

6*m20*1.5

335

514.5

~2252

24''*6 SPOKE

Note: Axle Head: FP Inner: HM518445/10   Outer: HM518445/10

    Axle Head: FN Inner: HM218248/10   Outer: HM212049/10

    Axle Head: FB Inner: HM220149/10   Outer: HM518445/10

    Axle Head: FD Inner: 32222          Outer: HM518445/10


Application of FUWA spoke type series axle

FUWA Spoke Type Series Axle is especially suitable for vehicles running under high temperature circumstance and complicated road condition on any Ultraton Semi Trailer. It is widely use especially in Middle East and Africa.
