FW31 Landing Gear Series

Semi Trailer

FW31 Landing Gear Series

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

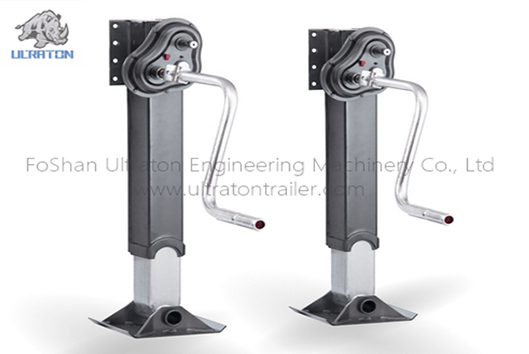

FW31 Landing Gear Series is a device with capacity 25T per pair used to support the front load of the Semi-Trailer and lift the height of the front of the Semi-Trailer through the hand-driven mechanism so as to facilitate the connection and suspension of the tractor.

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of FW31 Landing Gear Series

  • Heavy duty and extra durability designed

  • Gearbox with low temperature premium chassis lube rated for service from -30°C to +120°C

  • Maintenance free feature with grease lubricant packed jack screw

  • High gear and low gear is optional for different speed

  • Backing mounting plate is optional for greater load bearing capacity and extended life

  • Type A, G, S, R, T ,C shoes available for different use

  • One side operation with crank

  • Design of crank is optional

  • Meet Safety Regulations for commercial vehicles


Advantage of FW31 Landing Gear Series

  1. Mature technology and workmanship offers more stability, greater capacity and longer service life

  2. Strictly selected material and parts protect high performance.

  3. Complete quality control procedure can ensure good quality

  4. Various choice of shoes can meet different condition need

  5. Fast response and flexible service from our professional team

  6. Distinct location to get full range support on delivery and manufacturing

  7. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

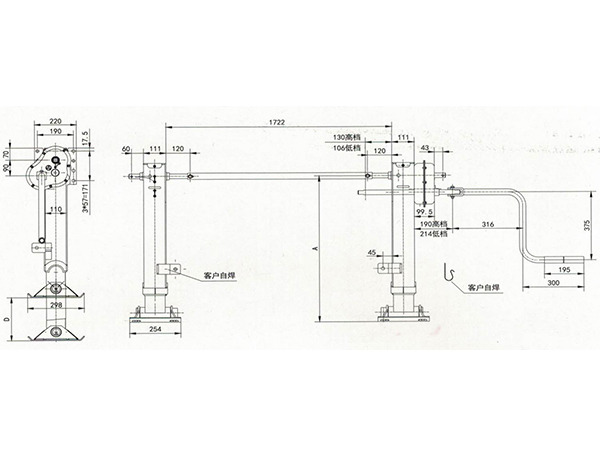

One Side Operation Landing Gear Assy

Model

Types Of Shoes

Lift D (mm)

Height A (mm)

FW3114C

C

360

621

FW3114A

A

360

712

FW3114G

G

360

668

FW3114R

R

360

695

FW3114S

S

360

720

FW3114T

T

360

692

FW3114LT

LT

360

631

FW3117C

C

430

691

FW3117A

A

430

782

FW3117G

G

430

738

FW3117R

R

430

765

FW3117S

S

430

790

FW3117T

T

430

762

FW3117LT

LT

430

701

FW3119C

C

480

741

FW3119A

A

480

832

FW3119G

G

480

788

FW3119R

R

480

815

FW3119S

S

480

840

FW3119T

T

480

812

FW3119LT

LT

480

751

Standard Specifications

Capacity             25,000KG/Pair

Static Load           60,000KG/Pair

Weight              100KG

Crank Force

                            Low Gear           1.0mm Per Turn(mm/r) Of Handle

                            High Gear           7.5mm Per Turn(mm/r) Of Handle

One Side Operation Crank Force        25T-33.5KG


Application of FW31 Landing Gear Series

FW31 Landing Gear Series is applicable on any Ultraton Semi Trailer.

Other notes of FW31 Landing Gear Series

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc .

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc..

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
