FW86 Type Heavy Duty suspension Series

Semi Trailer

FW86 Type Heavy Duty suspension Series

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

FW86 Type Heavy Duty Suspension Series is a widely applicable model of normal mechanical suspension that helps to guide the direction and to reduce the impact load and vibration by 9 pieces of widening heavy-duty steel leaf springs.

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of FW86 Type Heavy Duty suspension Series

  • Heavy duty and extra durability designed in comply with National Standard and ADR

  • Superior quality material SUP9 or 60Si2Mn optional on leaf spring

  • Typical structure consists of elastic elements, shock absorbers, and guiding mechanisms  serve as buffering, damping and force transmission

  • Equipped with 9x90x16 leaf spring

  • Design for 2 or 3 axles installation with 16ton each

  • Applicable for square beam trailer axle for heavy duty purpose

  • Installation is applicable for overslung


Advantage of FW86 Type Heavy Duty suspension Series

  1. Mature technology and reasonable design ensure good quality and competitive cost

  2. FW86 Type Heavy Duty Suspension Series uses steel leaf spring as the spring element, to achieve stronger rigidity and strength

  3. The grinding block'  angle is consistent with the direction in which the leaf spring is forced to expand.

  4. Design of grease lubrication nozzle helps reduce sliding friction between the leaf spring and the equilizer wear block

  5. Reasonable design can effectively reduce the friction of the tire and prolongs the service life of the tire during the process of frequent vehicle running.

  6. Simple structure makes easy maintenance

  7. Distinct location to get full range support on delivery and manufacturing

  8. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

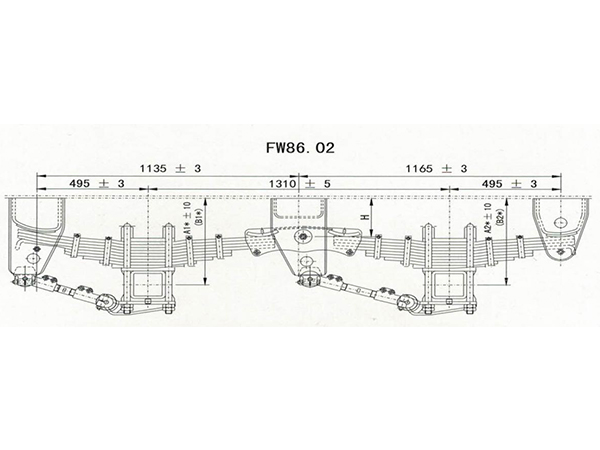

FW86.02 Tandem Suspension With Nine Leaf Springs.   Dimension:9*90*16
ModelHeight Of Towing Plate(mm)A1(mm)B1(mm))A2(mm)B2(mm)H(mm)Axle Load(KG)
FW860201A118047344346543518316,000*2
FW860202A122051348350547522316,000*2
FW860203A125054351353550525316,000*2
FW860201B118045442444641616416,000*2
FW860202B122049446448445620416,000*2
FW860203B125052649651848823416,000*2

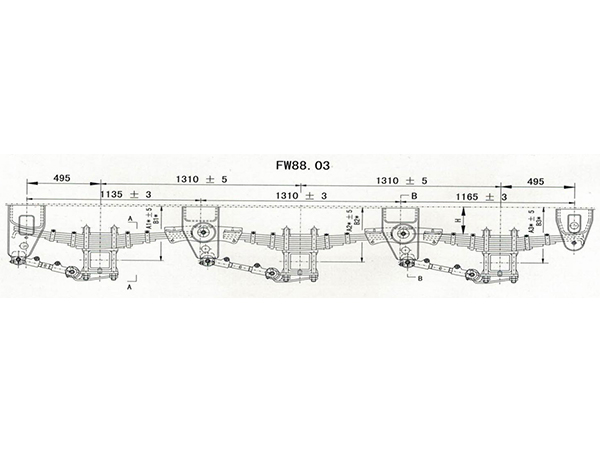

FW86.03 Tri Suspension With Nine Leaf Springs.   Dimension:9*90*16
ModelHeight Of Towing Plate (mm)A1(mm)B1(mm)A2(mm)B2(mm)A3(mm)B3(mm)H(mm)Axle Load(KG)
FW860301A1180 48945948045046743718316,000*3
FW860302A122052949952049050747722316,000*3
FW860303A125055952955052053750725316,000*3
FW860301B118047044046143144841816416,000*3
FW860302B122051048050147148845820416,000*3
FW860303B125054051053150151848823416,000*3
Note: (1)Dimension ‘A’: Unladen
(2) Dimension ‘B’: Rated Laden(For Reference Only)
(3) ‘U’ Bolt Nuts’ Tightening Torque: 600N.M.-650N.M.
(4) Nut Torque Of Rocker Shaft:350N.M.-400N.M.
(5) Torque Of Tighter Bolts For Harper And Rods: 120N.M.-160N.M.
(6) Torque Of Springs Bolts: 110N.M.-120N.M.
(7) Suitable For Round/Square Axles
(8) Spring Quantity Is Optional


Application of FW86 Type Heavy Duty suspension Series

FW86 Type Heavy Duty Suspension Series is widely applicable on any Ultraton Semi Trailer.

Other notes of FW86 Type Heavy Duty suspension Series
