FW68 Type Stamping suspension Series

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

Fw68 type Stamping Suspension Series is a model of normal mechanical suspension with integrated stamping hangers to guide the direction and to reduce the impact load and vibration by 8 pieces of steel leaf springs.

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of FW68 Type Stamping suspension Series

  • Heavy duty and extra durability designed hangers by using stamping integrated forming instead of welding to improve strength

  • Material of superior quality option for SUP9 or 60Si2Mn for leaf spring

  • The grinding block is Q345/Q235 (or 20# cast steel) welded type

  • A grease lubrication nozzle is on equilizer wear block

  • Axle spacing is normal and standard

  • Equipped with 8x75x13 leaf spring

  • Design for 3 axles installation with 11Ton each

  • Applicable for round beam trailer axle

  • Installation is applicable for overslung


Advantage of FW68 Type Stamping suspension Series

  1. Mature technology and reasonable design ensure good quality and competitive cost

  2. Stamping integrated forming hangers instead of welding type to improve strength

  3. Simple structure makes easy maintenance

  4. Lighter weight design can meet different need

  5. Flexible design on axle spacing available with 1360mm, 1537mm, 1232mm can meet different need

  6. Distinct location to get full range support on delivery and manufacturing

  7. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

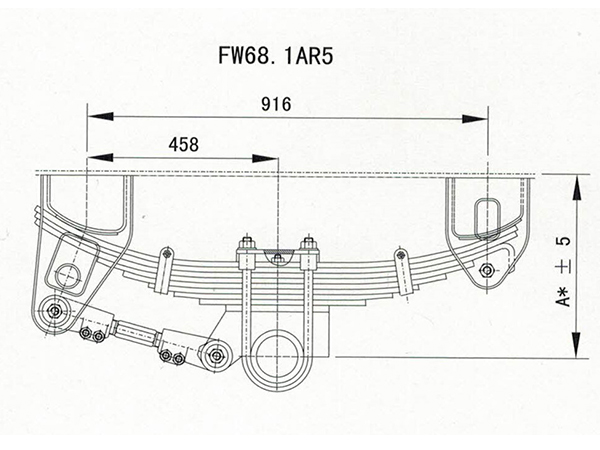

FW68.1 AR5 Single Suspension With Eight Leaf Springs.   Dimension:8*75*13

Model

A (mm)

Axle Load (KG)

FW68.10HAR5

440

11,000*1

FW68.10MAR5

415

11,000*1

FW68.10LAR5

390

11,000*1

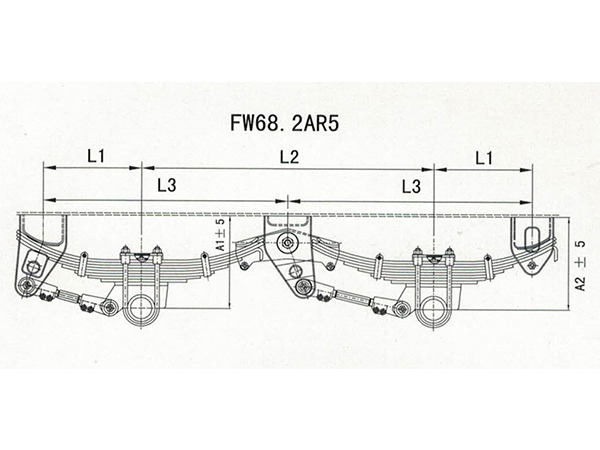

FW68.21AR5 Tandem Suspension With Eight Leaf Springs (Axle Spacing:1360).   Dimension:8*75*13

Model

A1 (mm)

A2 (mm)

L1 (mm)

L2 (mm)

L3 (mm)

Axle Load (KG)

FW68.21HHAR5

440

440

458

1360

1138

11,000*2

FW68.21MMAR5

415

415

458

1360

1138

11,000*2

FW68.21LLAR5

390

390

458

1360

1138

11,000*2

FW68.21HMAR5

440

415

458

1360

1138

11,000*2

FW68.21MLAR5

415

390

458

1360

1138

11,000*2

FW68.22 AR5 Tandem Suspension With Eight Leaf Springs (Axle Spacing:1537).   Dimension:8*75*13

Model

A1 (mm)

A2 (mm)

L1 (mm)

L2 (mm)

L3 (mm)

Axle Load (KG)

FW68.22HHAR5

440

440

458

1537

1226.5

11,000*2

FW68.22MMAR5

415

415

458

1537

1226.5

11,000*2

FW68.22LLAR5

390

390

458

1537

1226.5

11,000*2

FW68.22HMAR5

440

415

458

1537

1226.5

11,000*2

FW68.22MLAR5

415

390

458

1537

1226.5

11,000*2

FW68.23 AR5 Tandem Suspension With Eight Leaf Springs (Axle Spacing:1232).   Dimension:8*75*13

Model

A1 (mm)

A2 (mm)

L1 (mm)

L2 (mm)

L3 (mm)

Axle Load (KG)

FW68.23HHAR5

440

440

458

1232

1074

11,000*2

FW68.23MMAR5

415

415

458

1232

1074

11,000*2

FW68.23LLAR5

390

390

458

1232

1074

11,000*2

FW68.23HMAR5

440

415

458

1232

1074

11,000*2

FW68.23MLAR5

415

390

458

1232

1074

11,000*2

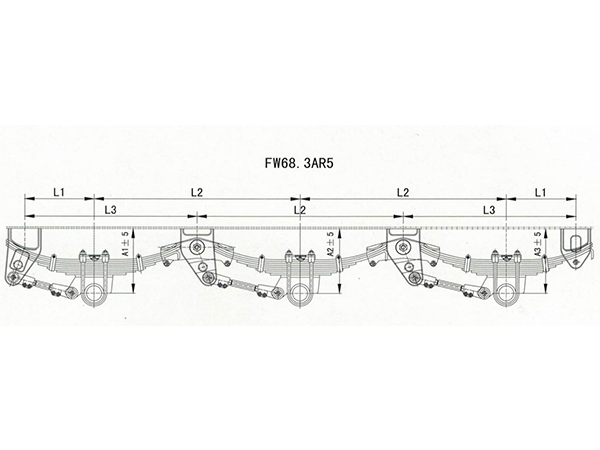

FW68.31 AR5 Tri Suspension With Eight Leaf Springs (Axle Spacing:1360).   Dimension:8*75*13

Model

A1(mm)

A2(mm)

A3(mm)

L1(mm)

L2(mm)

L3(mm)

Axle Load(KG)

FW68.31HHHAR5

440

440

440

458

1360

1138

11,000*3

FW68.31MMMAR5

415

415

415

458

1360

1138

11,000*3

FW68.31LLLAR5

390

390

390

458

1360

1138

11,000*3

FW68.31HMLAR5

440

415

390

458

1360

1138

11,000*3

FW68.32 AR5 Tri Suspension With Eight Leaf Springs (Axle Spacing:1537).   Dimension:8*75*13

Model

A1(mm)

A2(mm)

A3(mm)

L1(mm)

L2(mm)

L3(mm)

Axle Load(KG)

FW68.32HHHAR5

440

440

440

458

1537

1226.5

11,000*3

FW68.32MMMAR5

415

415

415

458

1537

1226.5

11,000*3

FW68.32LLLAR5

390

390

390

458

1537

1226.5

11,000*3

FW68.32HMLAR5

440

415

390

458

1537

1226.5

11,000*3

FW68.33 AR5 Tri Suspension With Eight Leaf Springs (Axle Spacing:1232).   Dimension:8*75*13

Model

A1(mm)

A2(mm)

A3(mm)

L1(mm)

L2(mm)

L3(mm)

Axle Load(KG)

FW68.33HHHAR5

440

440

440

458

1232

1074

11,000*3

FW68.33MMMAR5

415

415

415

458

1232

1074

11,000*3

FW68.33LLLAR5

390

390

390

458

1232

1074

11,000*3

FW68.33HMLAR5

440

415

390

458

1232

1074

11,000*3

Note: (1) Torque Settings

       Torque Arm Pin Nuts: 150/200N.M.

       Torque Arm Pin Bolts: 90/100N.M.

       Equaliser Shaft Nuts: 290/350N.M.

       ‘U’ Bolts Nuts: 500/540N.M.

       Drop Out Bolts: 75/85N.M.

(2) Tolerance On All Dimensions: ±3

(3) Fit Fixed Torque Arms On Kerb Side Of Trailer

(4) Suitable For Round/Square Axles

(5) Spring Quantity Is Optional



Application of FW68 Type Stamping suspension Series

FH68 type Stamping Suspension Series is applicable on any Ultraton Semi Trailer in light weight need and different need on workmanship of hanger.

Other notes of FW68 Type Stamping suspension Series

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions with drawing.

  • Offering customer quote in FOB or CFR etc .

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc.

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
