FW13 Type Suspension Series is a popular and widely applicable model of normal mechanical suspension that helps to guide the direction and to reduce the impact load and vibration by 10 pieces of steel leaf springs.

  • Overview
  • Advantage
  • Application
  • Other notes

Overview of FW13 Type Suspension Series

  • Heavy duty and extra durability designed.

  • Material of superior quality option for SUP9 or 60Si2Mn for leaf spring.

  • A grease lubrication nozzle is on equilizer wear block.

  • Reasonable design on torsion bar with bushing made of polyurethane rubber.

  • Design for 2 or 3 axles installation with 13ton each.

  • Applicable for both round beam trailer axle and square beam trailer axle.

  • Installation is applicable for overslung and underslung.


Advantage of FW13 Type Suspension Series

  1. Mature technology and reasonable design ensure good quality and competitive cost.

  2. FS13 Type Suspension Series uses steel leaf spring as the spring element, to achieve stronger rigidity and strength.

  3. Advanced workmanship and skilled technician team ensure strength of hangers.

  4. Reasonable design can effectively reduce the friction of the tire and prolongs the service life of the tire during the process of frequent vehicle running.

  5. Simple structure makes easy maintenance.

  6. Fast response and flexible service from our professional team.

  7. Distinct location to get full range support on delivery and manufacturing.

  8. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

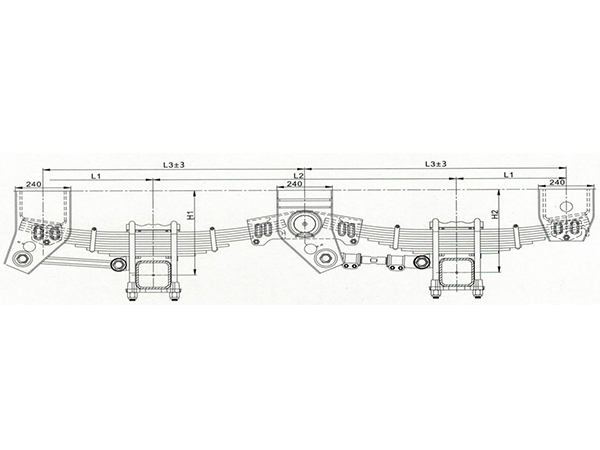

FW13 Tandem Suspension With Leaf Springs.

Model

Installation Way

Axle Load (kg)

Leaf Spring Specification

Wheelbase (mm)

Axle Tube

No-Load Driving Altitude  (mm)

Auxiliary Parameters (mm)

H1

H2

L1

L2

L3

FW132D01AH1A432-001

Positive Assembly

13,000*2

10*90*13

1310

□150

454

446

475

1310

1130

FW132D01BH1A432-001

Positive Assembly

13,000*2

10*90*13

1310

□150

435

427

475

1310

1130

FW132D02AH1A432-001

Positive Assembly

13,000*2

10*90*13

1310

□150

494

486

475

1310

1130

FW132D02BH1A432-001

Positive Assembly

13,000*2

10*90*13

1310

□150

475

467

475

1310

1130

FW132D03AH1A432-001

Positive Assembly

13,000*2

10*90*13

1310

□150

524

516

475

1310

1130

FW132D03BH1A432-001

Positive Assembly

13,000*2

10*90*13

1310

□150

505

497

475

1310

1130

FW132D200H3B432-001

Reverse Assembly

13,000*2

10*90*13

1310

□150

200

200

475

1310

1130

FW132D250H4B432-001

Reverse Assembly

13,000*2

10*90*13

1310

□150

250

250

475

1310

1130

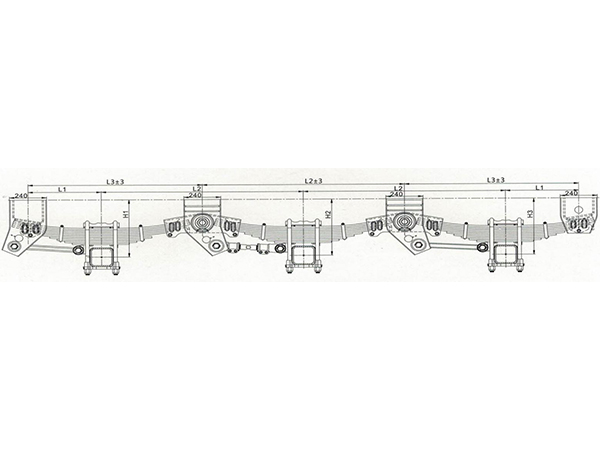

FW13 Tri Suspension With Leaf Springs.

Model

Installation Way

Axle Load (kg)

Leaf Spring Specification

Wheelbase (mm)

Axle Tube

No-Load Driving Altitude  (mm)

Auxiliary Parameters (mm)

H1

H2

L1

L2

L3

FW133D01AH1A432-001

Positive Assembly

13,000*3

10*90*13

1310

□150

470

461

475

1310

1130

FW133D01BH1A432-001

Positive Assembly

13,000*3

10*90*13

1310

□150

451

442

475

1310

1130

FW133D02AH1A432-001

Positive Assembly

13,000*3

10*90*13

1310

□150

510

501

475

1310

1130

FW133D02BH1A432-001

Positive Assembly

13,000*3

10*90*13

1310

□150

491

482

475

1310

1130

FW133D03AH1A432-001

Positive Assembly

13,000*3

10*90*13

1310

□150

540

531

475

1310

1130

FW133D03BH1A432-001

Positive Assembly

13,000*3

10*90*13

1310

□150

521

512

475

1310

1130

FW133D200H3B432-001

Reverse Assembly

13,000*3

10*90*13

1310

□150

200

200

475

1310

1130

FW133D250H4B432-001

Reverse Assembly

13,000*3

10*90*13

1310

□150

250

250

475

1310

1130

Note:(1) The Driving Height Under Load Is Reduced By 30-35mm For No-Load Driving Height

(2) Standard Wheelbase:1310mm. Other Wheelbase Optional:1360mm,1500mm

(3) Optional :127Round Axle/146 Round Axle

(4) Leaf Spring Specification Optional:4*90*22/8*90*16


Application of FW13 Type Suspension Series

FS13 Type Suspension Series is applicable on any Ultraton Semi Trailer such as Fence Semi Trailer, Wall Side Semi Trailer, Flatbed Semi Trailer, Low Bed Semi Trailer etc. in need of high standard.
