FW68 Type Stamping Underslung suspension Series
FW68 type Stamping Underslung Suspension Series is a model of normal mechanical suspension with integrated stamping hangers to guide the direction and to reduce the impact load and vibration by 8 pieces of steel leaf springs, with underslung installation design.
- Overview
- Advantage
- Application
- Other notes
Overview of FW68 Type Stamping Underslung suspension Series
Instead of welding, hangers are heavy duty and extra durability designed by using stamping integrated forming to improve strength
Superior quality material SUP9 or 60Si2Mn optional on leaf spring
A grease lubrication nozzle is on equilizer wear block
Reasonable design on torsion bar with bushing made of polyurethane rubber
Equipped with 8x75x13 leaf spring
Design for 2 axles or 3 axles installation with 11Ton each
Applicable for round beam trailer axle
Installation is applicable for underslung.
Advantage of FW68 Type Stamping Underslung suspension Series
Mature technology and reasonable design ensure good quality and competitive cost
Stamping integrated forming hangers instead of welding type to improve strength
Simple structure makes easy maintenance
Underslung installation can help lower center of gravity for stronger loading capacity
Flexible design on axle spacing available with 1360, 1537, 1232 can meet different need
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

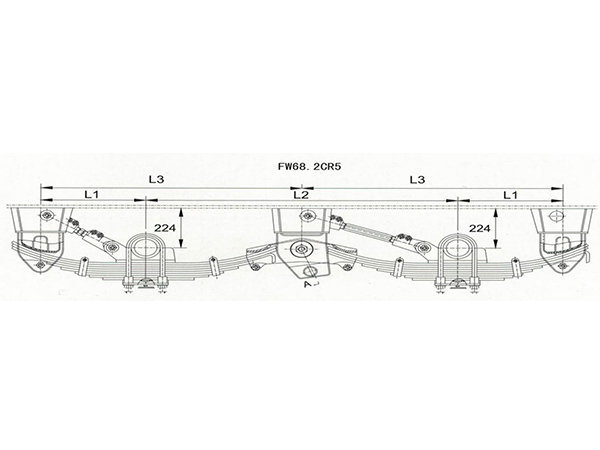

FW68.21 CR5 Tandem Underslung Suspension With Eight Leaf Springs(Axle Spacing:1360). Dimension:8*75*13 | ||||
Model | L1(mm) | L2(mm) | L3(mm) | Axle Load (KG) |
FW68.2/1360/224/CR5/8 | 458 | 1360 | 1138 | 11,000*2 |
FW68.22 CR5 Tandem Underslung Suspension With Eight Leaf Springs(Axle Spacing:1537). Dimension:8*75*13 | ||||
Model | L1(mm) | L2(mm) | L3(mm) | Axle Load(KG) |
FW68.2/1537/224/CR5/8 | 458 | 1537 | 1226.5 | 11,000*2 |
FW68.23 CR5 Tandem Underslung Suspension With Eight Leaf Springs(Axle Spacing:1232). Dimension:8*75*13 | ||||
Model | L1(mm) | L2(mm) | L3(mm) | Axle Load(KG) |
FW68.2/1232/224/CR5/8 | 458 | 1232 | 1074 | 11,000*2 |

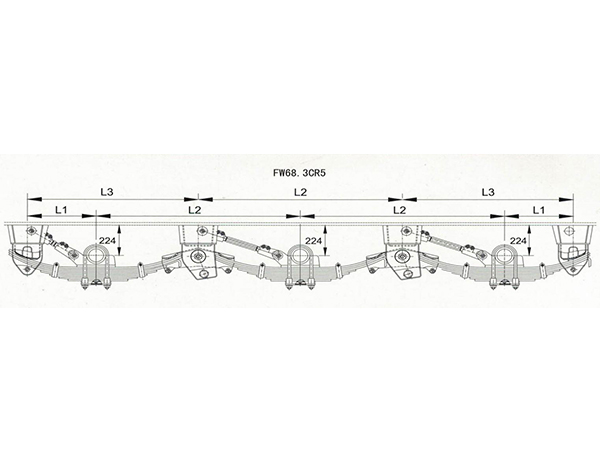

FW68.31 CR5 Tri Underslung Suspension With Eight Leaf Springs(Axle Spacing:1360). Dimension:8*75*13 | ||||
Model | L1(mm) | L2(mm) | L3(mm) | Axle Load(KG) |
FW68.3/1360/224/CR5/8 | 458 | 1360 | 1138 | 11,000*3 |
FW68.32 CR5 Tri Underslung Suspension With Eight Leaf Springs(Axle Spacing:1537). Dimension:8*75*13 | ||||
Model | L1(mm) | L2(mm) | L3(mm) | Axle Load(KG) |
FW68.3/1537/224/CR5/8 | 458 | 1537 | 1226.5 | 11,000*3 |
FW68.33 CR5 Tri Underslung Suspension With Eight Leaf Springs(Axle Spacing:1232). Dimension:8*75*13 | ||||
Model | L1(mm) | L2(mm) | L3(mm) | Axle Load(KG) |
FW68.3/1232/224/CR5/8 | 440 | 1232 | 1074 | 11,000*3 |
Note:(1) Torque Settings Torque Arm Pin Nuts:150/200N.M. Torque Arm Pin Bolts:90/100N.M. Equaliser Shaft Nuts: 290/350N.M. 'U' Bolts Nuts:500/540N.M. Drop Out Bolts:75/85N.M. (2) Tolerance On All Dimensions: ±3 (3) Fit Fixed Torque Arms On Kerb Side Of Trailer (4) Suitable For Round/Square Axles (5) Spring Quantity Is Optional | ||||
Application of FW68 Type Stamping Underslung suspension Series
FH68 type Stamping Underslung Suspension Series is applicable on any Ultraton Semi Trailer in different need on workmanship of hanger and lower center of gravity.
