FUWA 50 Maintenance Free Series Axle
FW50 Maintenance Free Series is innovated and advanced axle model with oil lubrication system instead of traditional grease lubrication which can satisfy your special need as easy maintenance.
- Overview
- Advantage
- Application
- Other notes

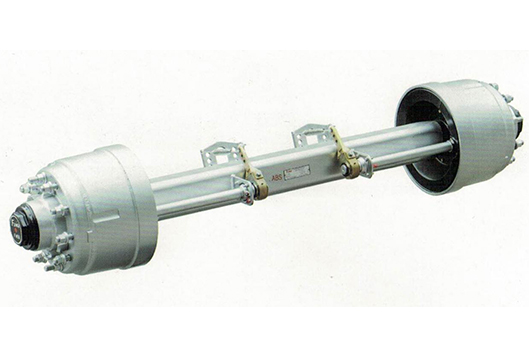

Overview of FUWA 50 Maintenance Free Series Axle
Integrated one-piece design axle beam with special heat treatment made by low carbon alloy steel 20Mn2.
Spider camshaft and anchor pin bores are machined with reference to the spindle after the welding operation.
In the oil lubrication system, the hub cap and the oil seal (inside) form a gear oil storage space. The bearing is immersed in the gear oil for optimum lubrication.
The specially designed oil seal has a compensating function.
Axle beam is optional for round 127mm diameter, round 146mm diameter and square 150mm.
Track length and camshaft length could be customized.
Optional for automatic slack adjuster and ABS system.
Advantage of FUWA 50 Maintenance Free Series Axle
Strictly selected raw material and parts ensure more stability and greater capacity.
Special processed spindle with induction hardened bearing journals provide superior fatigue capability.
The bearing temperature will be greatly reduced, and the maintenance period will exceed one year, saving maintenance cost.
The integral oil seal will always ensure the angle of the inner seal lip and will not leak.
The liquid level can be checked through a transparent viewing window.
Specially designed shaft nut with 0.001 inch (0.254 mm) adjustment increment to ensure the final clearance (gap) of the bearing is between 0.001-0.003 inches, avoiding inaccurate bearing clearance and causing oil seal failure, oil leakage and other failures.
The rolling resistance will drop by more than 50%, saving more fuel.
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

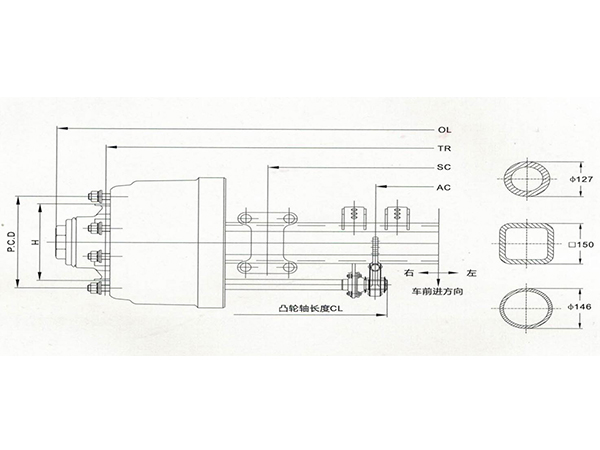

Axle Type | Axle Beam | 105 (km/h) Max. Capacity (kg) | 'S' Cam Brake Series ø * Width (mm) | Spring Center SC (mm) | Track TR (mm) | Spring No. | Center Distance Of Chamber | Wheel Fixing | Total Length OL (mm) | Recommended Wheel | |||
CL (mm) | AC (mm) | Studs (mm) | P.C.D. (mm) | Ø H (mm) | |||||||||
CA2018CM01AA | ○127 | 11,000/12,500 | Ø 420*180 | ≥940 | 1840 | 37 | 543 | 384 | 10*M20*1.5 ISO | 335 | 281 | 2115 | 7.5V-20 |
CA2018CM01AA | ○127 | 11,000/12,500 | Ø 420*180 | ≥1150 | 2050 | 37 | 543 | 594 | 10*M20*1.5 ISO | 335 | 281 | 2325 | 7.5V-20 |
CA2018CM02AA | ○127 | 11,000/12,500 | Ø 420*220 | ≥940 | 1840 | 37 | 543 | 340 | 10*M20*1.5 ISO | 335 | 281 | 2115 | 7.5V-20 |
CA2018CM02AA | ○127 | 11,000/12,500 | Ø420*220 | ≥1150 | 2050 | 37 | 543 | 550 | 10*M20*1.5 ISO | 335 | 281 | 2325 | 7.5V-20 |
CA2618CM01AA | ○146 | 11,000/12,500 | Ø420*180 | ≥940 | 1840 | 37 | 543 | 384 | 10*M20*1.5 ISO | 335 | 281 | 2115 | 7.5V-20 |
CA2618CM01AA | ○146 | 11,000/12,500 | Ø420*180 | ≥1150 | 2050 | 37 | 543 | 594 | 10*M20*1.5 ISO | 335 | 281 | 2325 | 7.5V-20 |
CA2618CM02AA | ○146 | 11,000/12,500 | Ø420*220 | ≥940 | 1840 | 37 | 543 | 340 | 10*M20*1.5 ISO | 335 | 281 | 2115 | 7.5V-20 |
CA2618CM02AA | ○146 | 11,000/12,500 | Ø420*220 | ≥1150 | 2050 | 37 | 543 | 550 | 10*M20*1.5 ISO | 335 | 281 | 2325 | 7.5V-20 |
CA2418CM01AA | □150 | 13,000 | Ø420*180 | ≥940 | 1840 | 37 | 543 | 384 | 10*M20*1.5 ISO | 335 | 281 | 2115 | 7.5V-20 |
CA2418CM01AA | □150 | 13,000 | Ø 420*180 | ≥1150 | 2050 | 37 | 543 | 594 | 10*M20*1.5 ISO | 335 | 281 | 2325 | 7.5V-20 |
CA2418CM02AA | □150 | 13,000 | Ø420*220 | ≥940 | 1840 | 37 | 543 | 340 | 10*M20*1.5 ISO | 335 | 281 | 2115 | 7.5V-20 |
CA2418CM02AA | □150 | 13,000 | Ø420*220 | ≥1150 | 2050 | 37 | 543 | 550 | 10*M20*1.5 ISO | 335 | 281 | 2325 | 7.5V-20 |
Application of FUWA 50 Maintenance Free Series Axle
FW50 Maintenance Free Series is recommended to use on Tank Semi Trailer, High-pressure gas long tubular Semi Trailer, Fully Enclosed Semi Trailer, Vehicle Transport Semi Trailer, tobacco, medicine, electronic transport Semi-Trailer etc.
